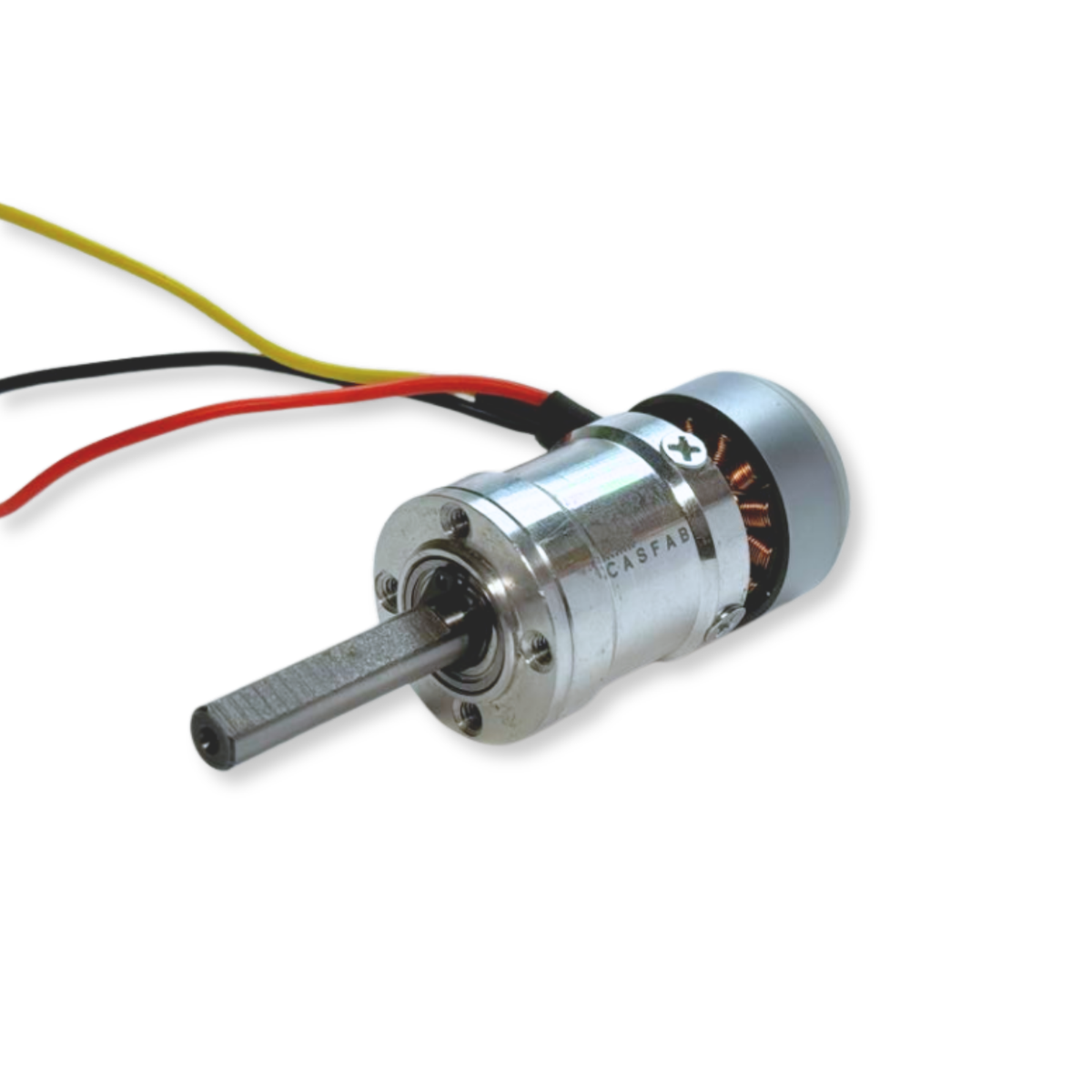

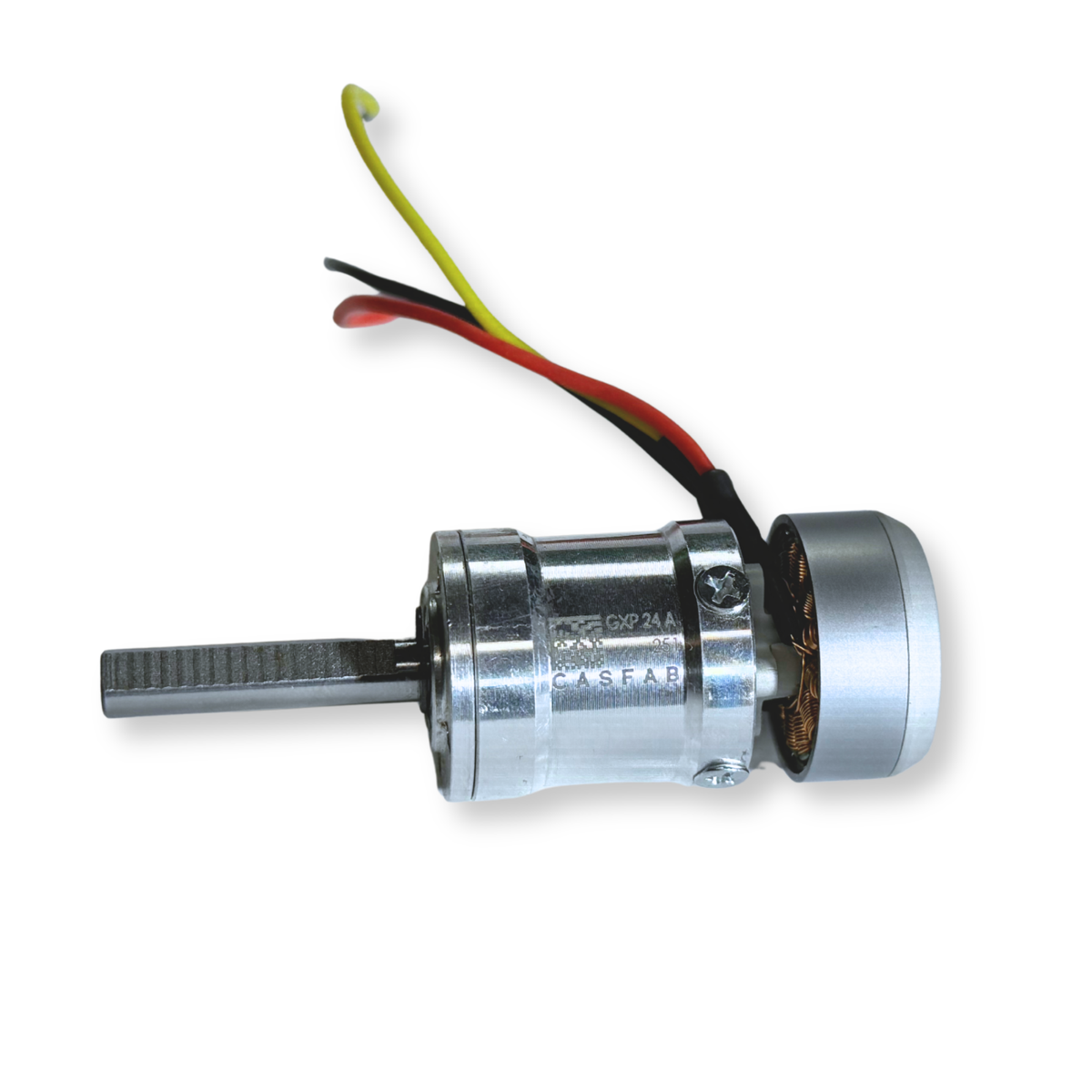

Megalodon 2005 Beetleweight Combat Robot Brushless Drive Motor and Gearbox (25:1 Reduction, 24mm Planetary Gearbox, 1900KV, 6mm shaft)

The name Megalodon means "Big Tooth". Featuring Mod 0.5 internal gears in the gearbox, Megalodon motors have the largest gear teeth of any Beetleweight brushless gearmotor. Whether you are building your first 3-lb robot or competing at the highest level, the oversized teeth in the Megalodon gearmotors deliver strong pushing power as drive motors and significantly reduce the risk of gear failure on impacts. Weighing in at just 60.5g, the Megalodon 2005s are great for powering lifters and flipper arms as well!

For optimal drive system rigidity, this motor mates directly with our Megalodon Titanium Mounting Plates!

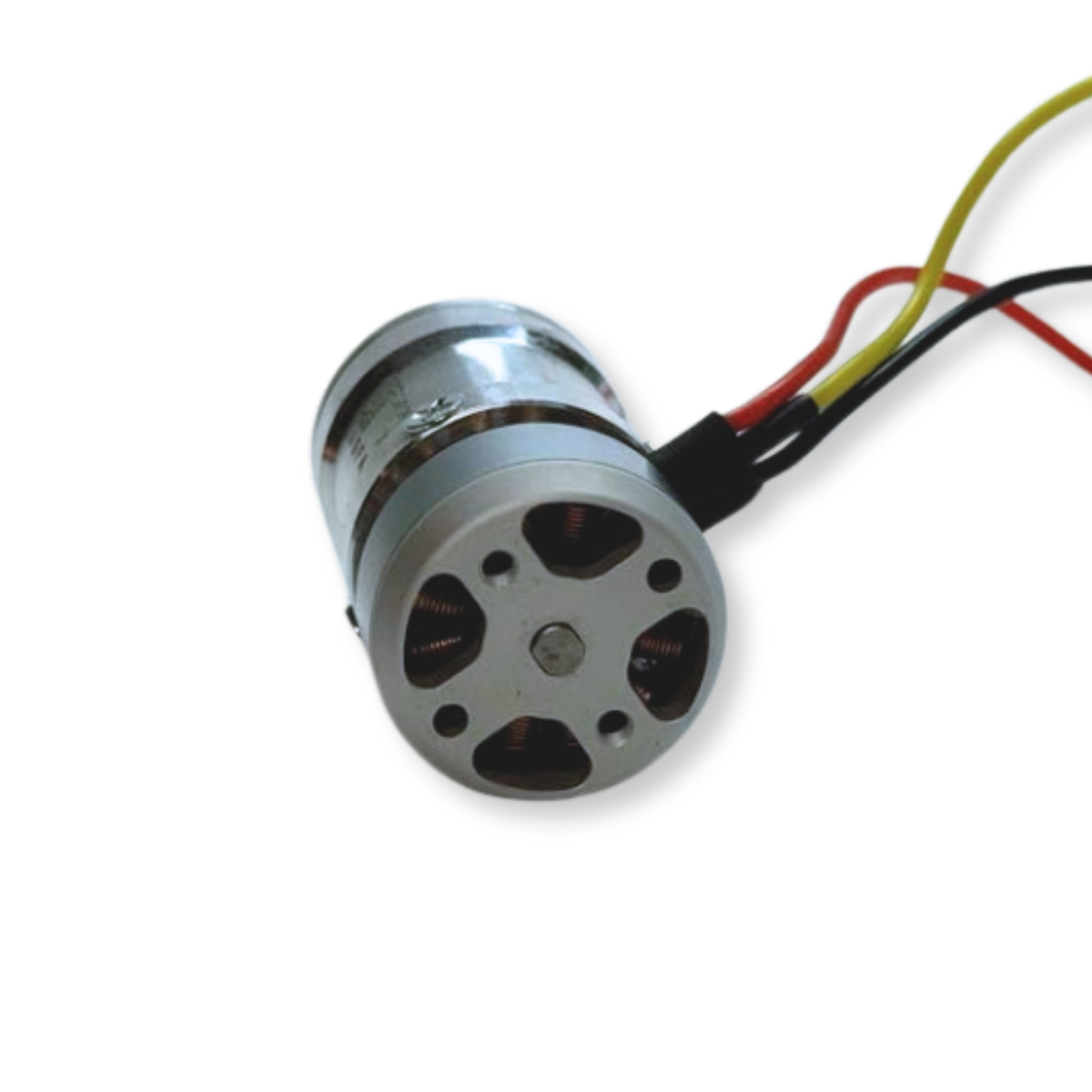

EC 2005 Brushless Motor Specifications

• KV Rating: 1900 (RPM/V)
• Voltage Range: Optimized for 3S to 6S LiPo battery systems. Pilot production: recommended 3-4S LiPo voltage.

25:1 Megalodon Gearbox Specifications

• Reduction: 25:1

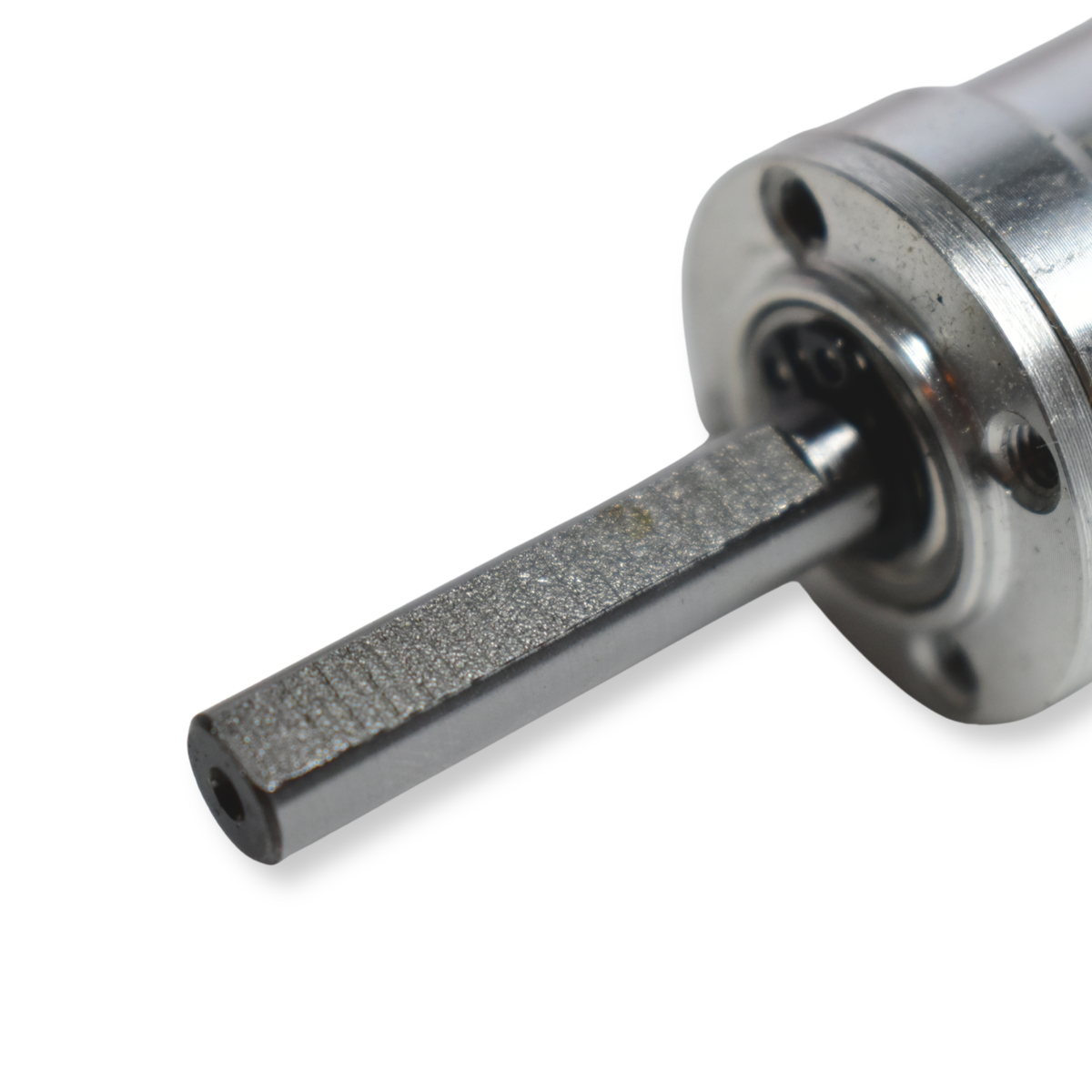

• Output Shaft: 6mm D-Shaft, Textured Flat

Mounting Specifications

• Hole Pattern: Standard M3 19mm center distance face mount.
• Mounting Depth: 4.7mm front face screw depth.
• It is HIGHLY recommended to mount the Megalodon motors to a mounting depth of 4mm if possible, or to fill unused face screw holes with set screws for maximum torque transfer.

Note: These are PILOT PRODUCTION motors. Builder feedback is welcome and encouraged!
