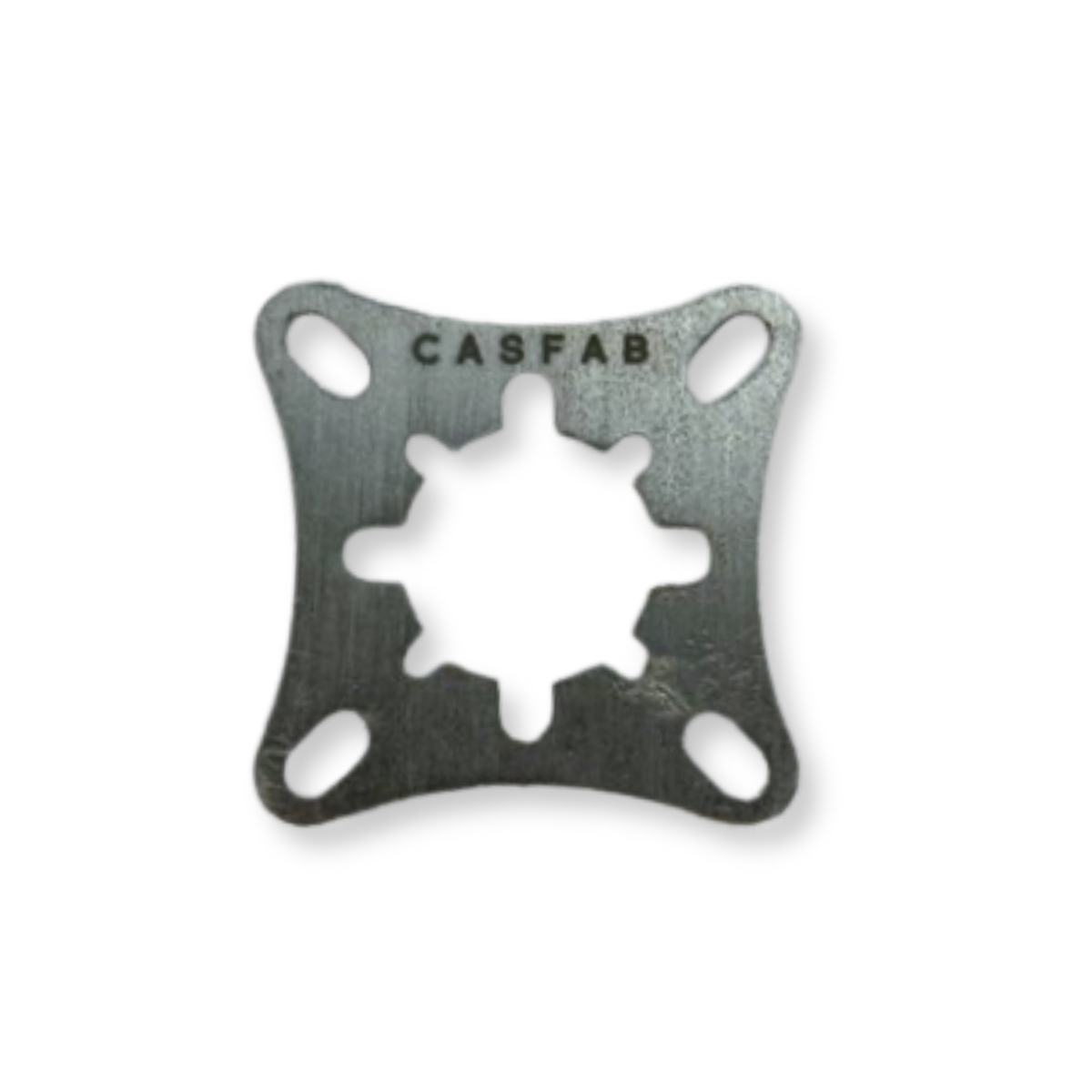

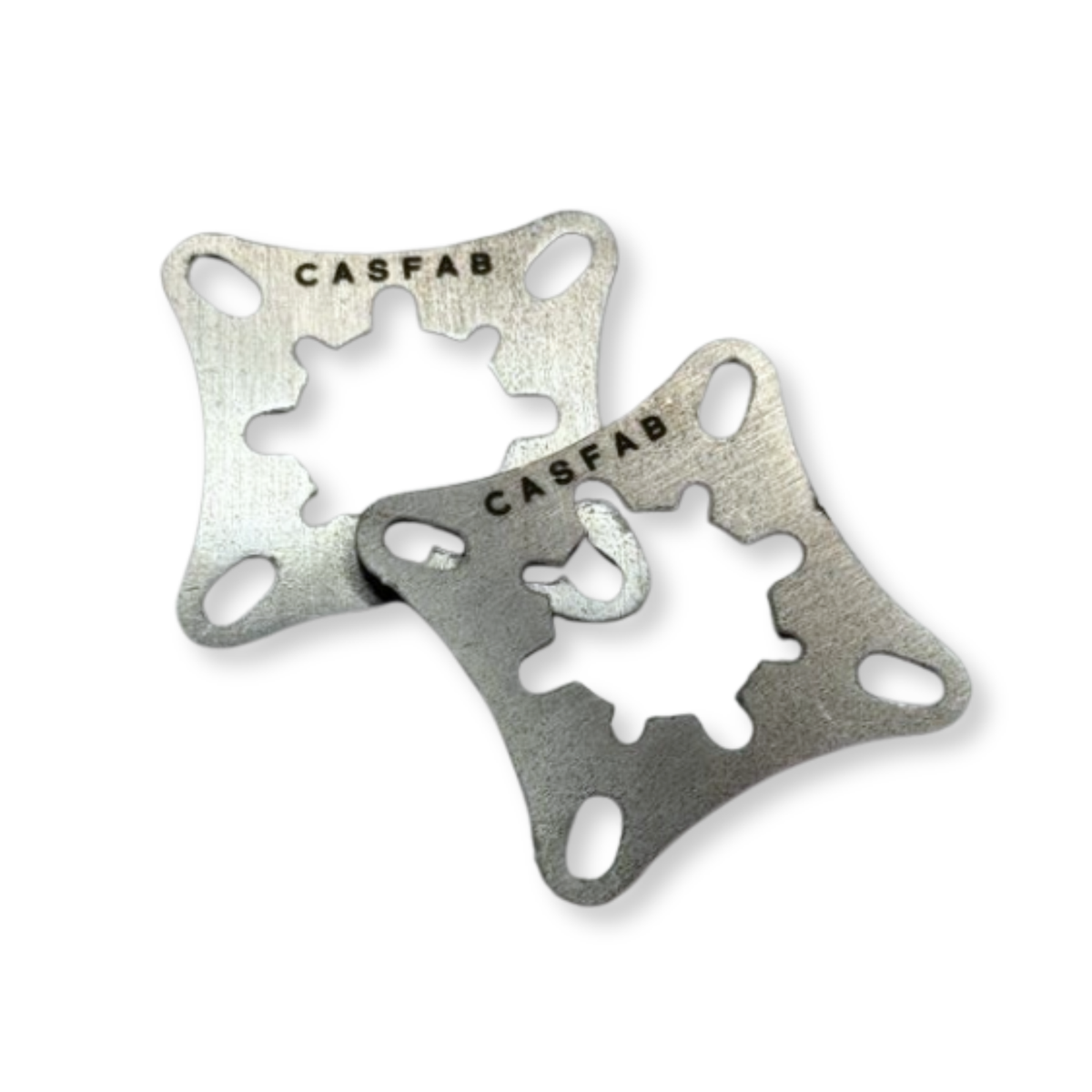

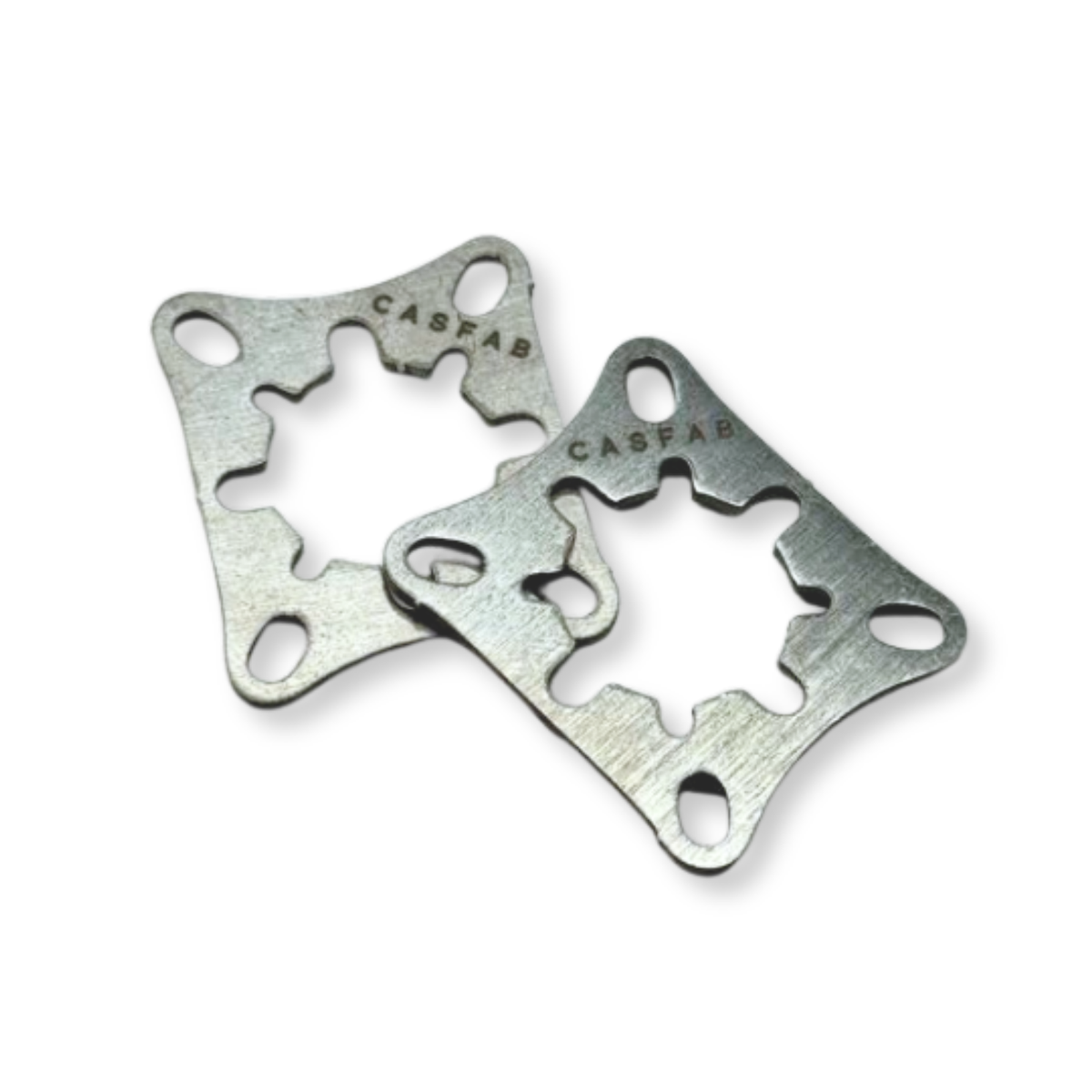

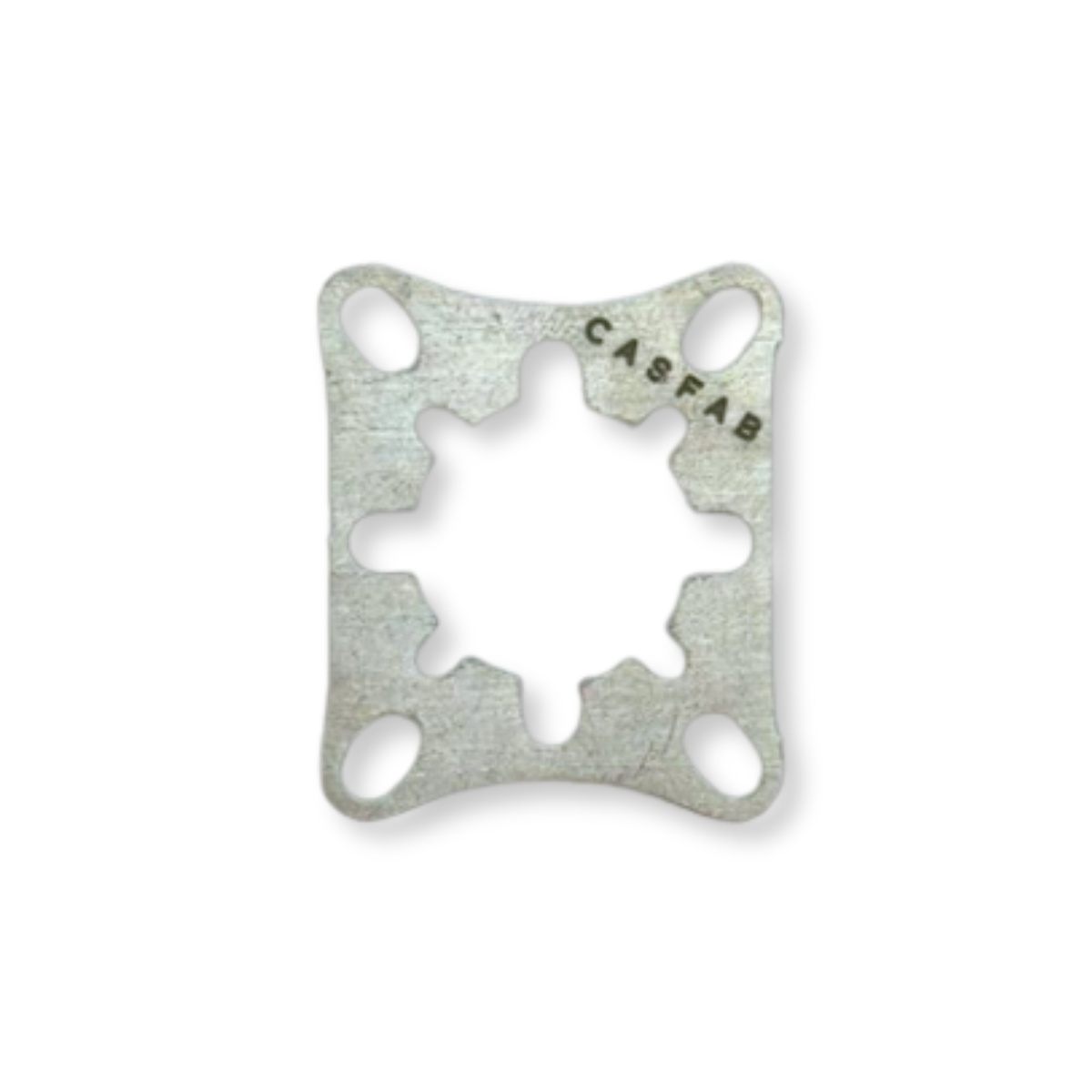

Titanium motor mounts designed for 24 mm motors. Available in both square and compact designs. Comes as a pack of 2. Designed to mate with the Megalodon Series Motors.

Compact Mount (31mm x 26mm) Specifications:

• 15mm bore diameter

• 26mm length
• 31mm width
• 1.5mm depth
• 3g each
• Ti6Al4V Titanium alloy

Square Mount (33mm x 33mm) Specifications:

• 15mm bore diameter
• 33mm length
• 33mm width
• 1.5mm depth
• 4g each
• Ti6Al4V Titanium alloy


DOWNLOADS:

Megalodon Mount (Square) STEP File

Megalodon Mount (Compact) STEP File

Megalodon Mounts Datasheet
