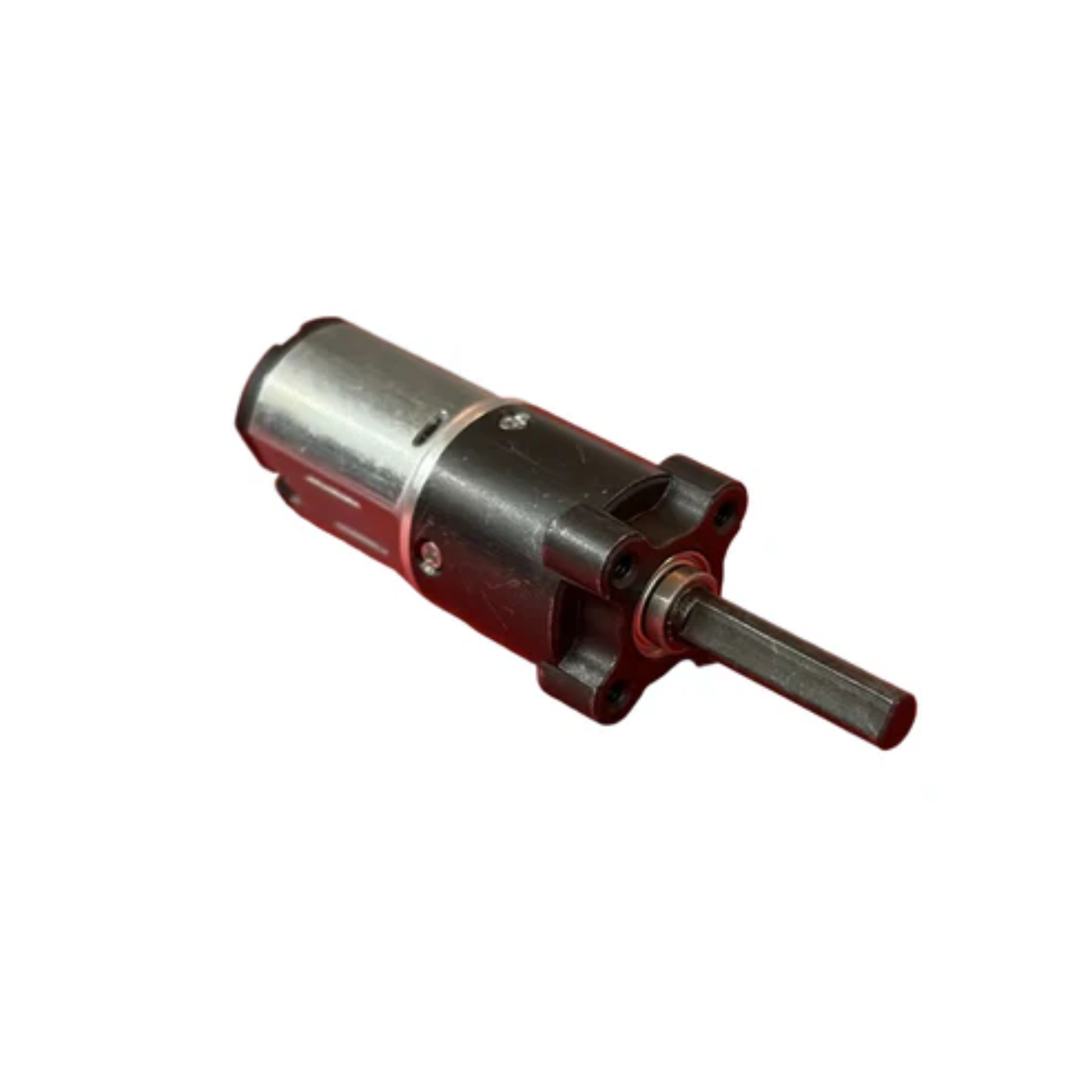

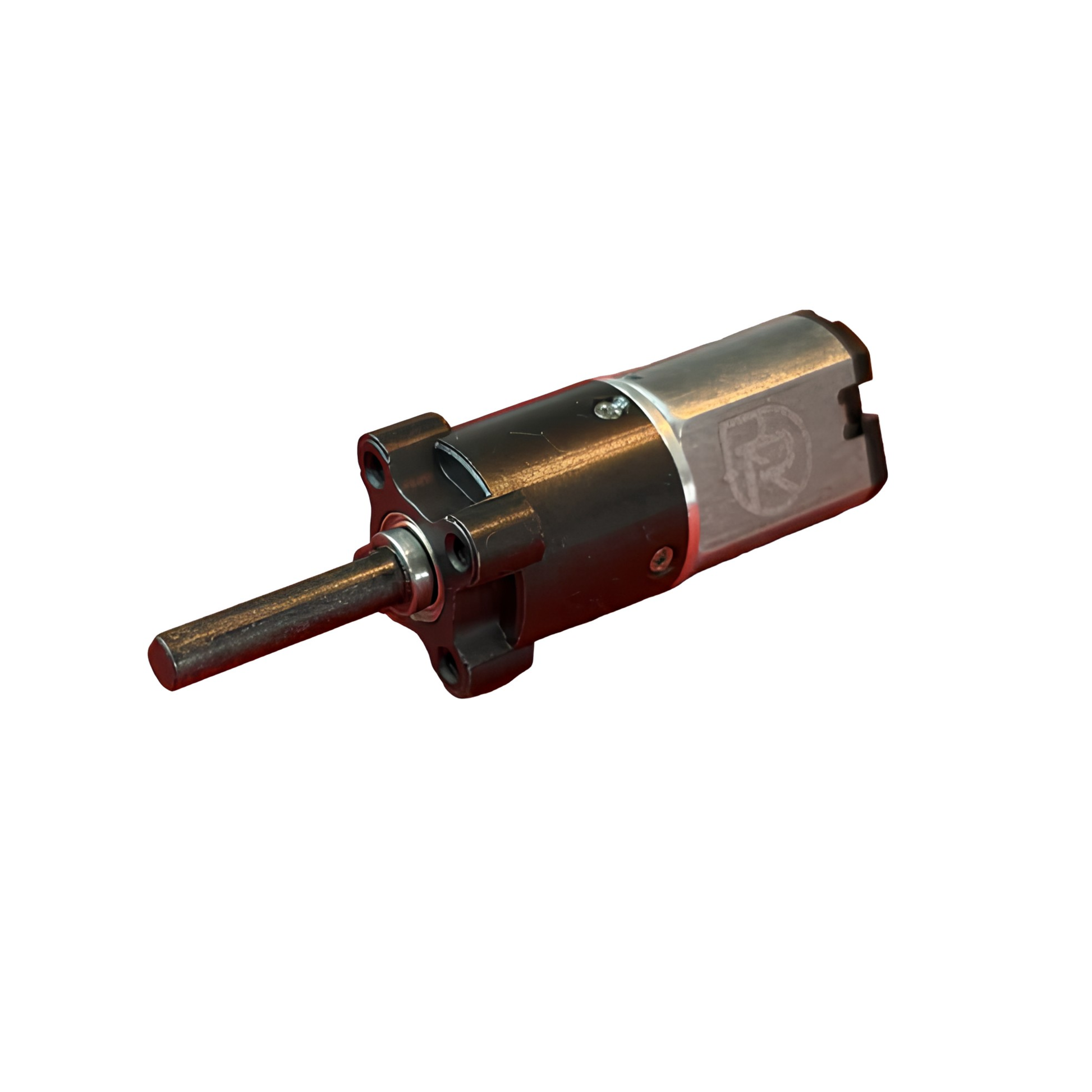

Mini Pro Brushed (4mm) - Antweight planetary gearmotor (1pc)

Tired of bushings failing on your brushed drive motors? Tired of fiddling with super short M2 screws? This upgraded antweight drive motor has a custom tooled outer casing specifically to remove failure modes of the repeat mini brushed motors. Gone are the 3mm shafts bending. No longer will a bushing failing lock up your drive. Rest easily knowing that too long mounting screws won't kill your motor.

Specifications:

• 29.7g
• Four lobed mounting pattern on the face makes for easy clamp mounting
• Dual ball bearings supporting the output shaft
• 4mm hardened steel billet output shaft
• 4 final stage planet gears (vs the standard 3)
• Machined planet gears for added durability

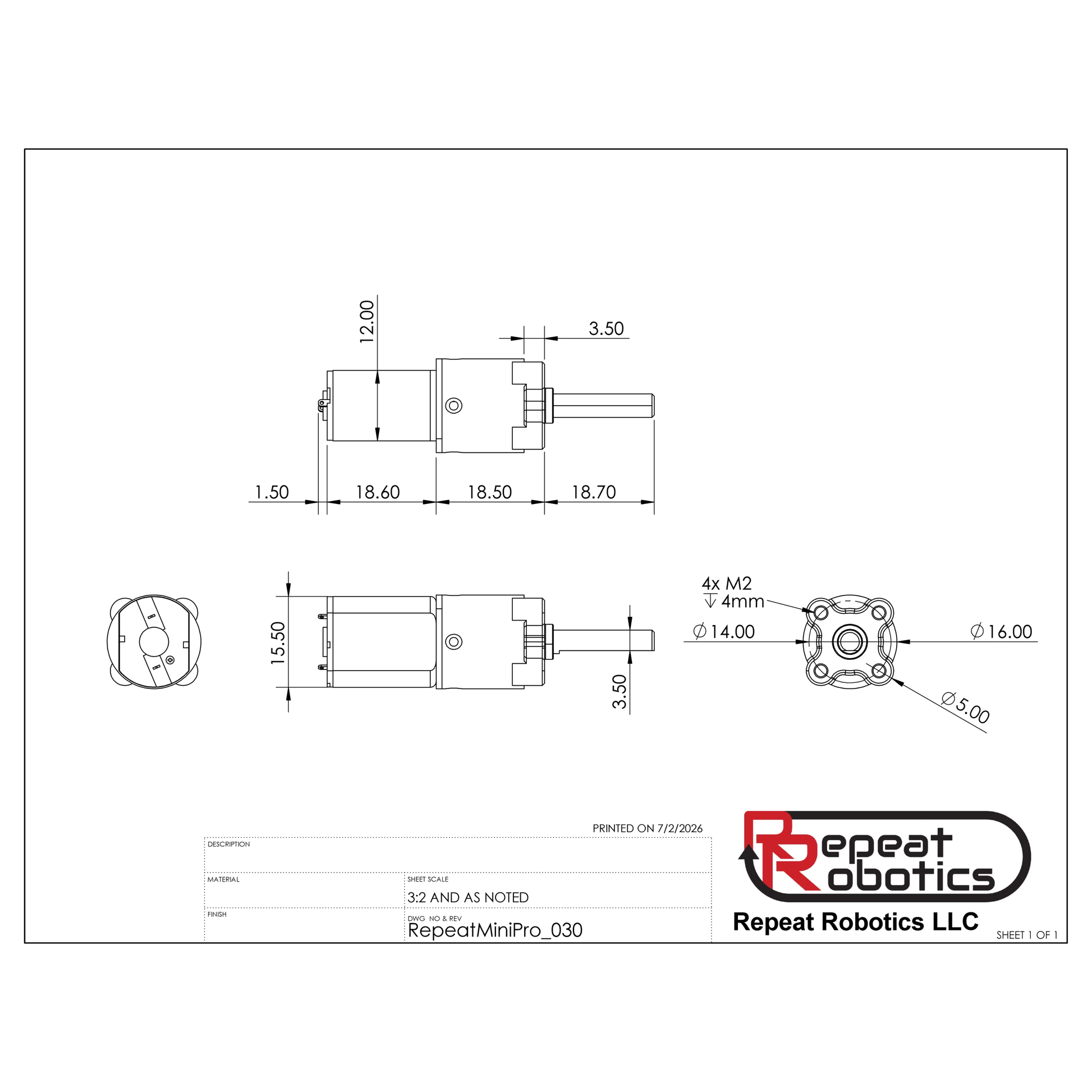

• 4x M2 tapped hole on a 14mm circle for mounting
• Custom wound 030 brushed motor
• 2-4s lipo rated voltage
• 16mm diameter, 22.6:1 all metal planetary gearbox

Find the 3D model HERE

Check out the distribution boards HERE

Performance

• 12V input (3S) - 1220rpm free speed - 2A stall current - 1187 g.cm stall torque - 3.72W max power output
• 7.4V input (2S) - 752rpm
• 14.8v input (4S) - 1504rpm



Purchase includes one (1pc) Mini Pro Brushed Antweight planetary gearmotor.
