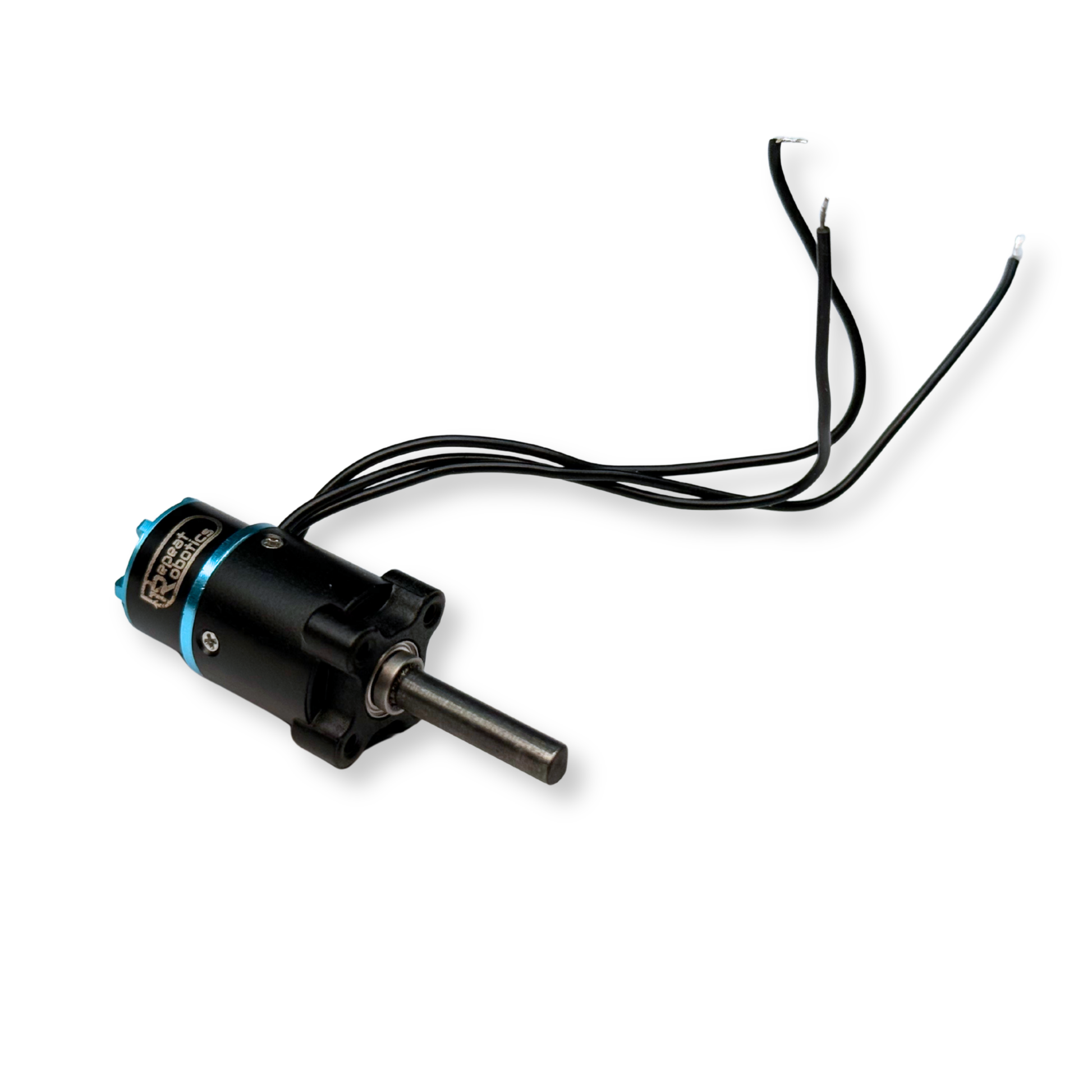

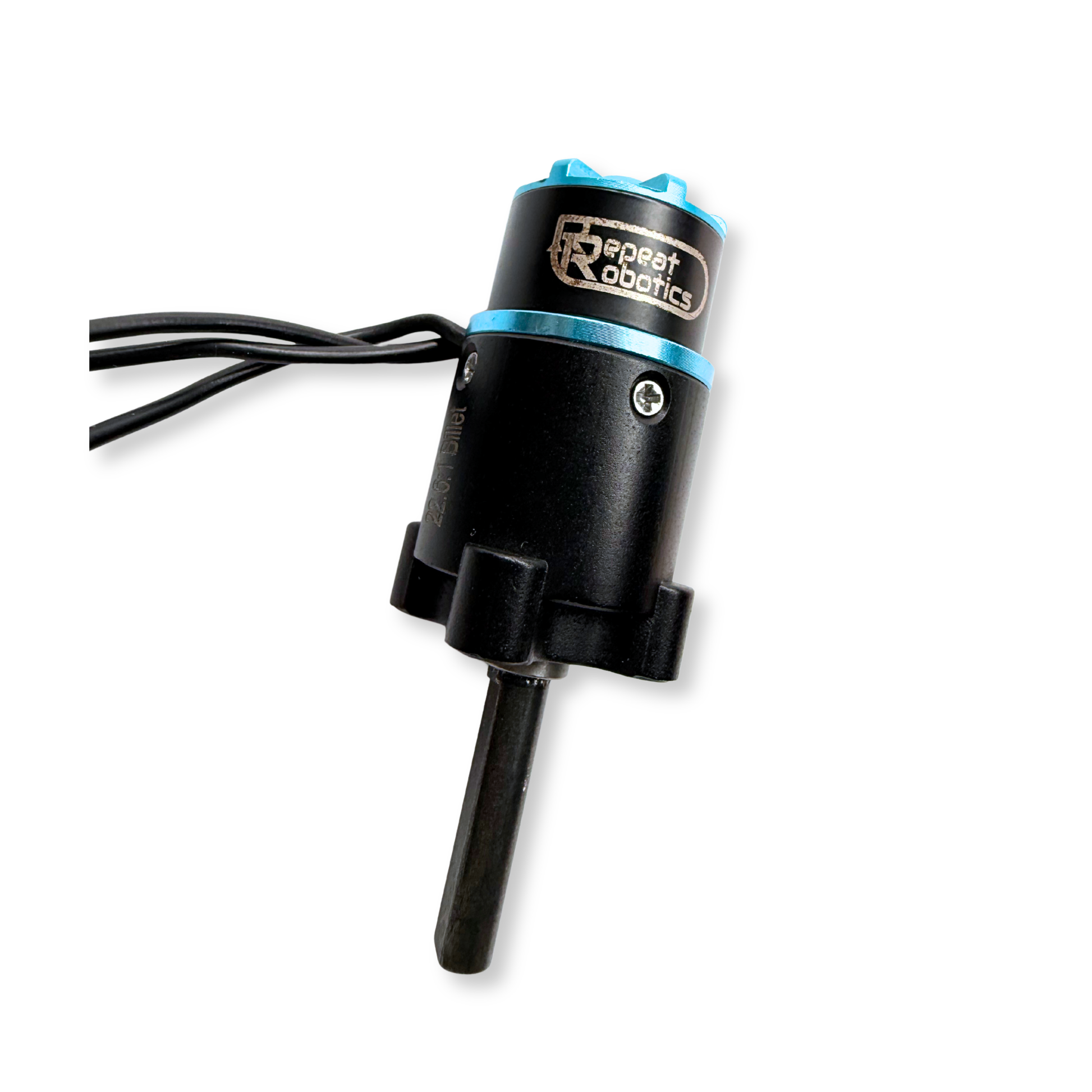

Mini Pro 1106 - Brushless Antweight Planetary Gearmotor

The new best brushless antweight high-power planetary gearmotor on the market has arrived.

Specifically designed for combat robotics by Repeat Robotics, this upgraded Antweight (1lb) drive motor has a custom tooled outer casing to remove failure modes of the old versions of the Repeat Mini brushed motors. Gone are the 3mm shafts bending. No longer will a bushing failing lock up your drive. Inserting mounting screws that are too long will no longer damage your motor!

Description:

• 24.6g weight
• Four-lobed mounting pattern on the face makes for easy clamp mounting
• Dual ball bearings supporting the output shaft
• 4mm hardened steel billet output shaft

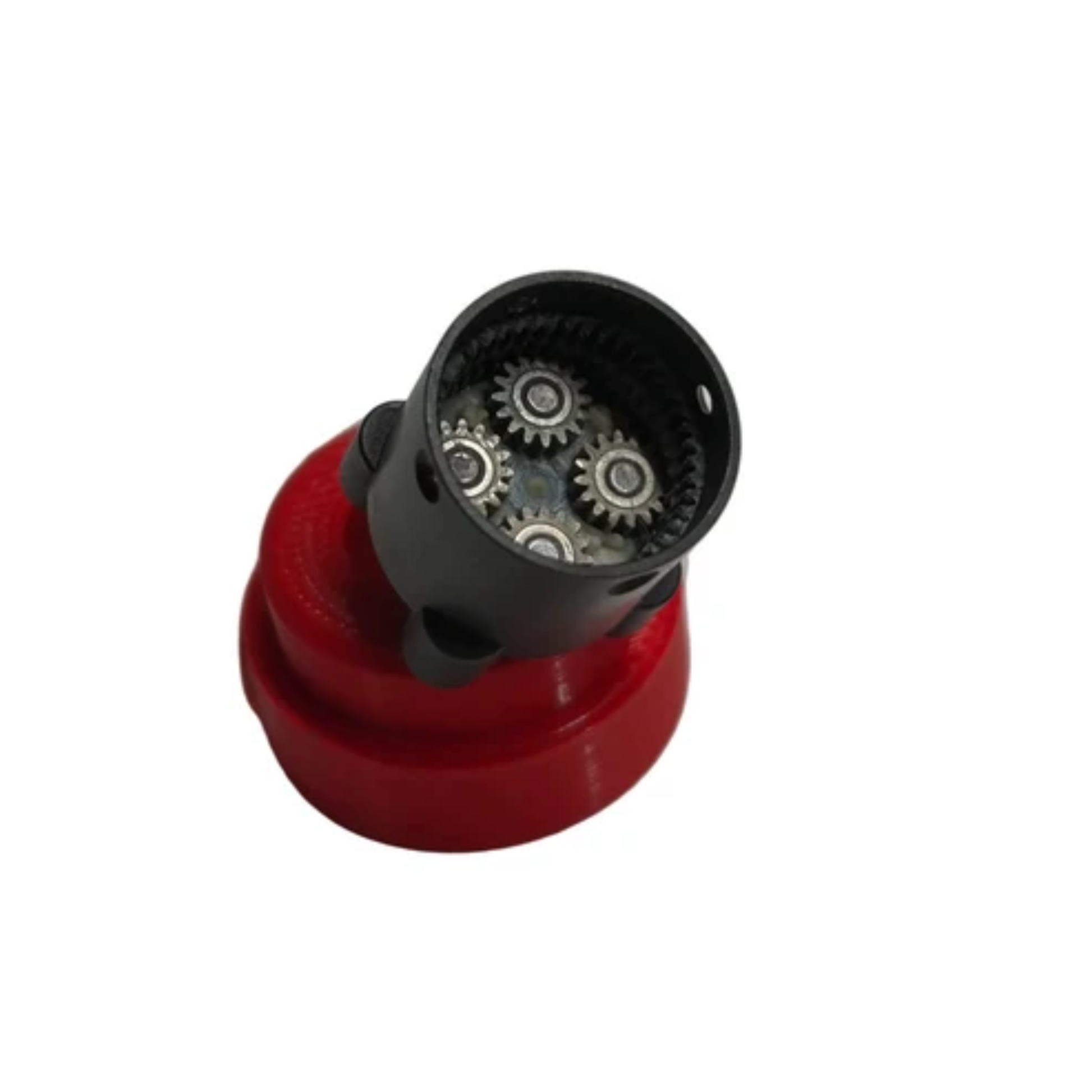

• 4 final stage planet gears (vs the standard 3)
• Machined planet gears for added durability
• 4x M2 tapped hole on a 14mm circle for mounting

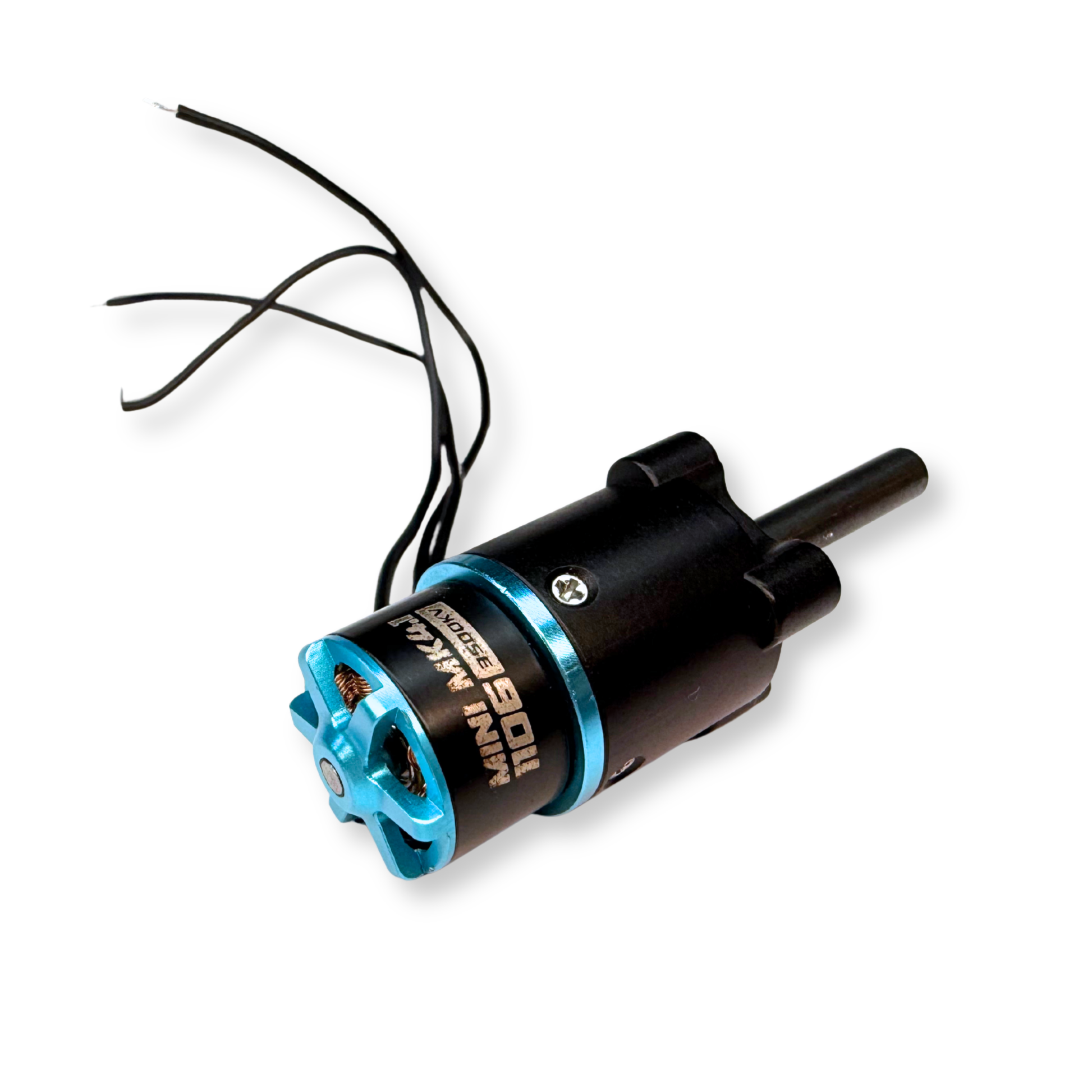

• Custom designed 3500kv 1106 brushless motor
• 2-4s LiPo rated voltage
• 16mm diameter, 22.6:1 all metal planetary gearbox
• Upgraded Mk4.1 motor has about 20% more torque

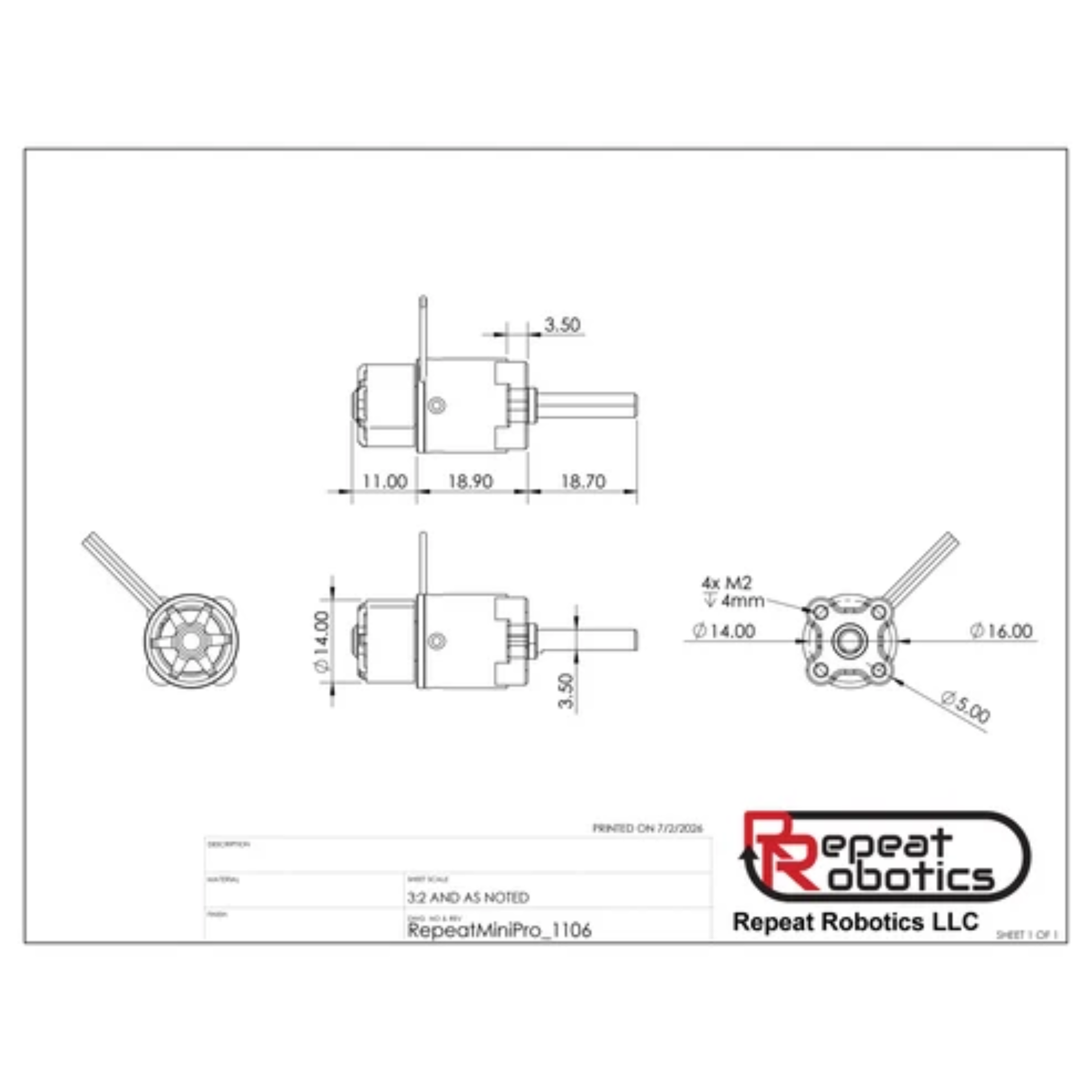

Find the 3D model HERE

Check out replacement parts HERE
