Repeat Robotics

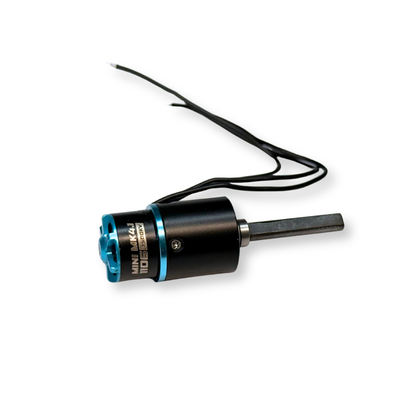

Mini Brushless 1106 Mk4.1 - Antweight Planetary Gearmotor (4mm Shaft, 28:5:1 Drive Gear Ratio)
Mini Brushless 1106 Mk4.1 - Antweight Planetary Gearmotor (4mm Shaft, 28:5:1 Drive Gear Ratio)
Regular price
$36.00 USD
Regular price
Sale price
$36.00 USD
Quantity
Couldn't load pickup availability

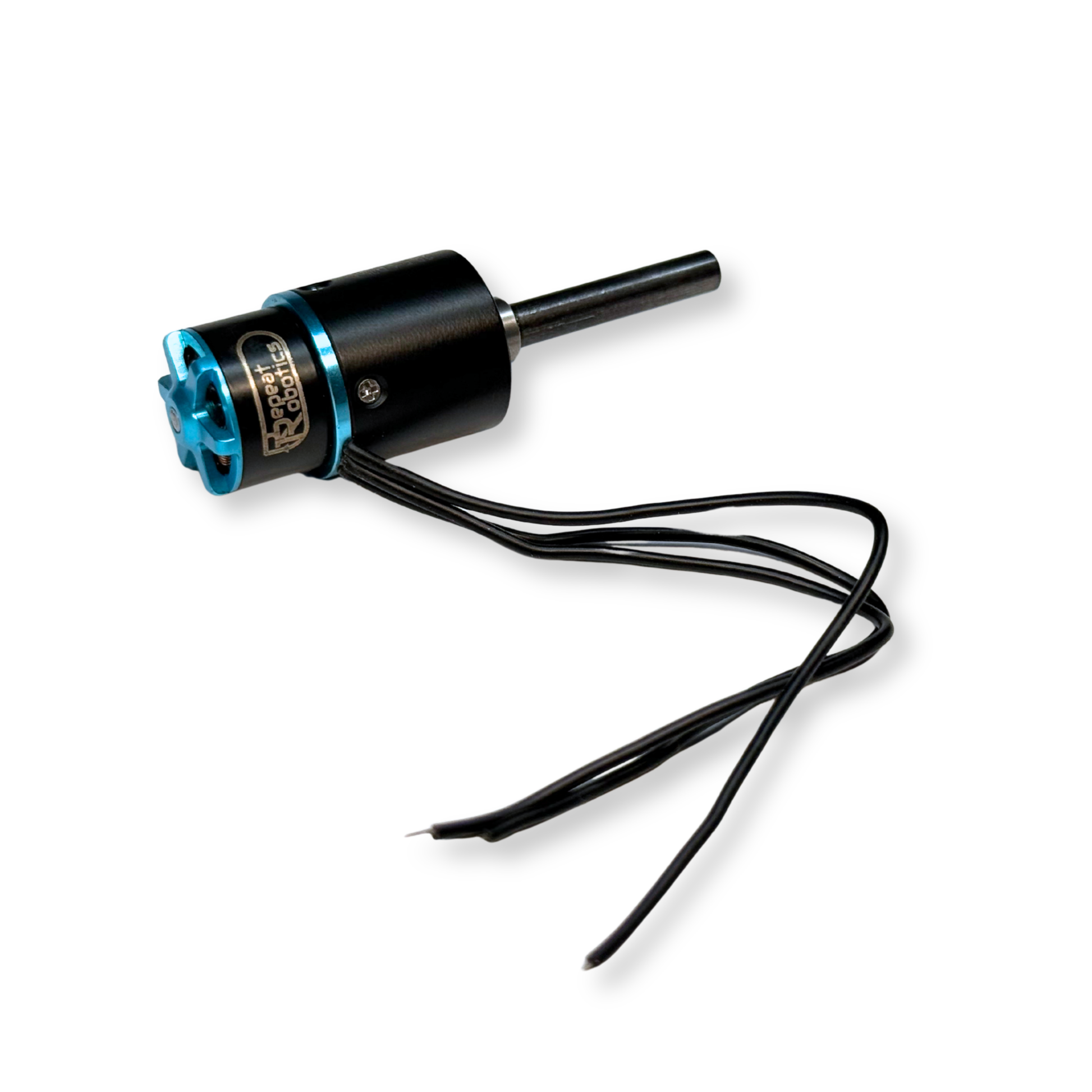

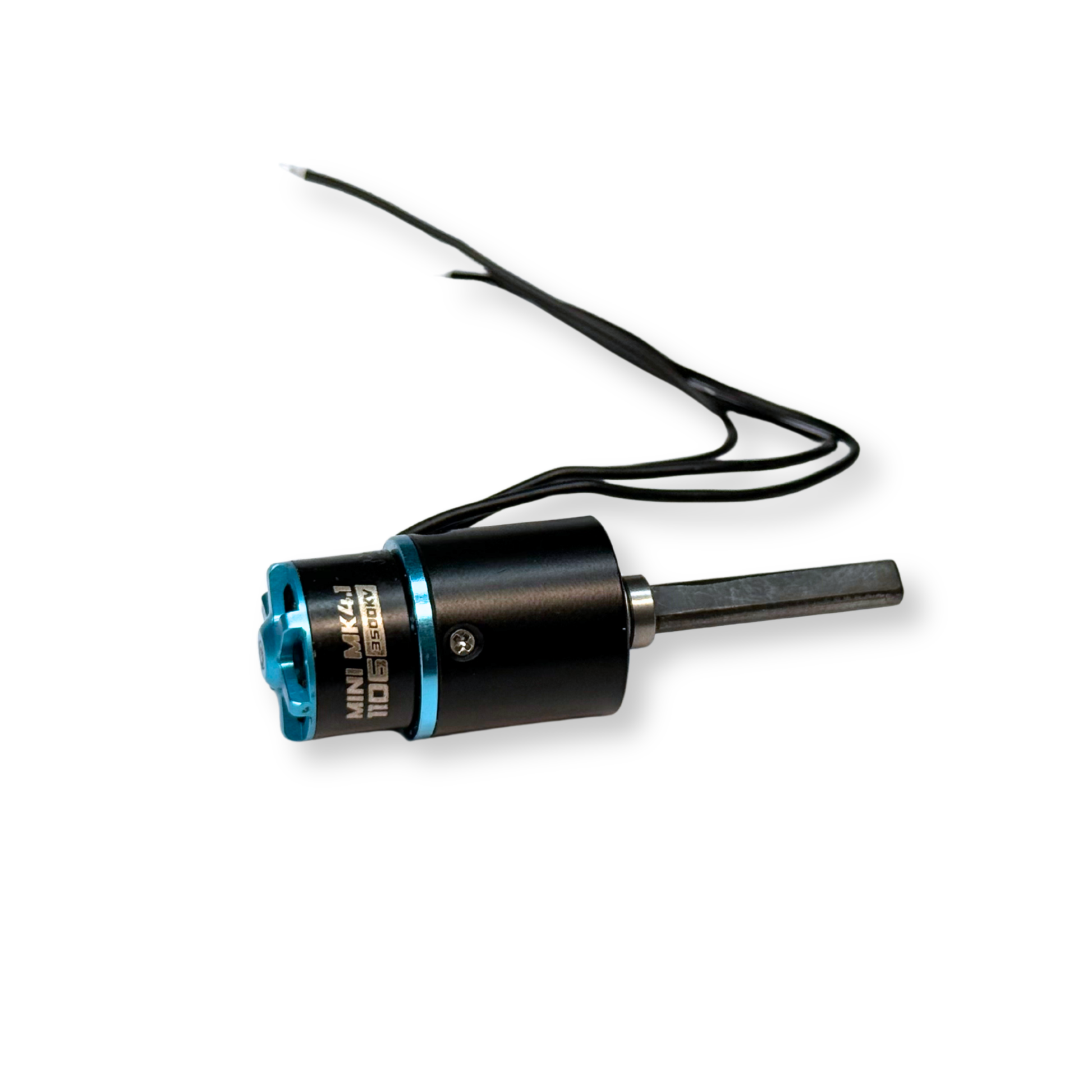

The Repeat drive mini Mk4 is Repeat Robotics' upgraded high-power brushless antweight gearmotors, featuring a custom-wound 1106 brushless motor coupled to a two stage, 28.5:1, all metal 16mm planetary gearbox. These motors will give you the power to drive circles around your competition... literally. Not sold on these motor's power output? NHRL 3lb world champion multi-bot Repeater runs the Mk3 version of these motors, and the Mk4.1s have been upgraded significantly since then!
Features:
- 23.2g weight
- 1106 3500kv custom brushless motor
- 2s-4s LiPo rated voltage
- 16mm, 28.5:1 or 10 all metal planetary gearbox
- 4mm "D" extra long output shaft (can be cut to length)
- ~28mm body length
- 10.5mm M2 face-mount hole pattern
- Comes ready for combat, just solder the motor leads to a brushless ESC

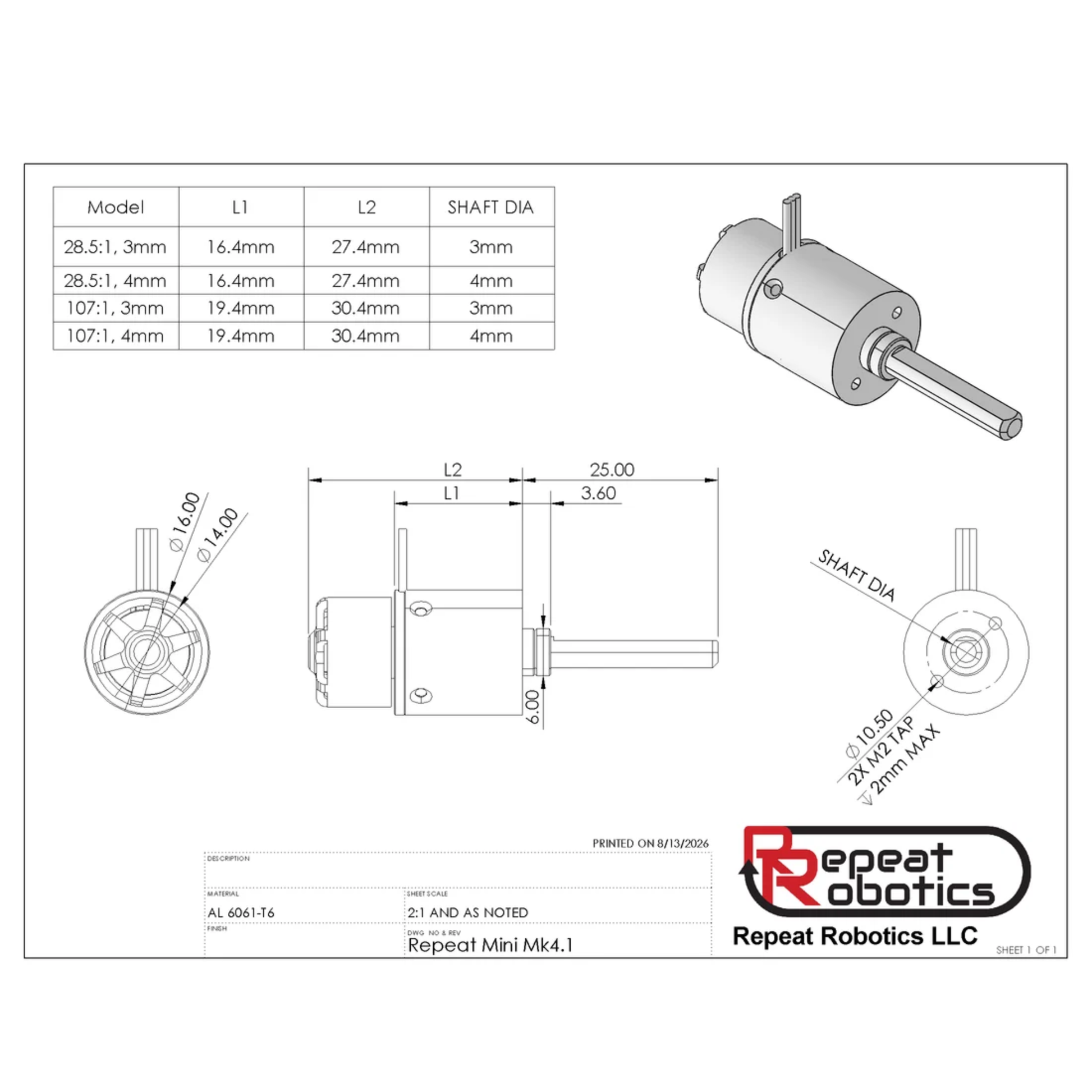

Find the 3D Model here: https://grabcad.com/library/repeat-mini-mk4-1-1
Improvements vs Mk4 design:
- New 1106 motor provides 20% more torque
- Now shorter and lighter!
- Further changed the wire retention with stronger stator winding wires and mechanical clamping of the wires at the stator base.
Disclaimers: These gearboxes can only accept ~2mm of face screw engagement. Using screws that are too long will result in damage.
