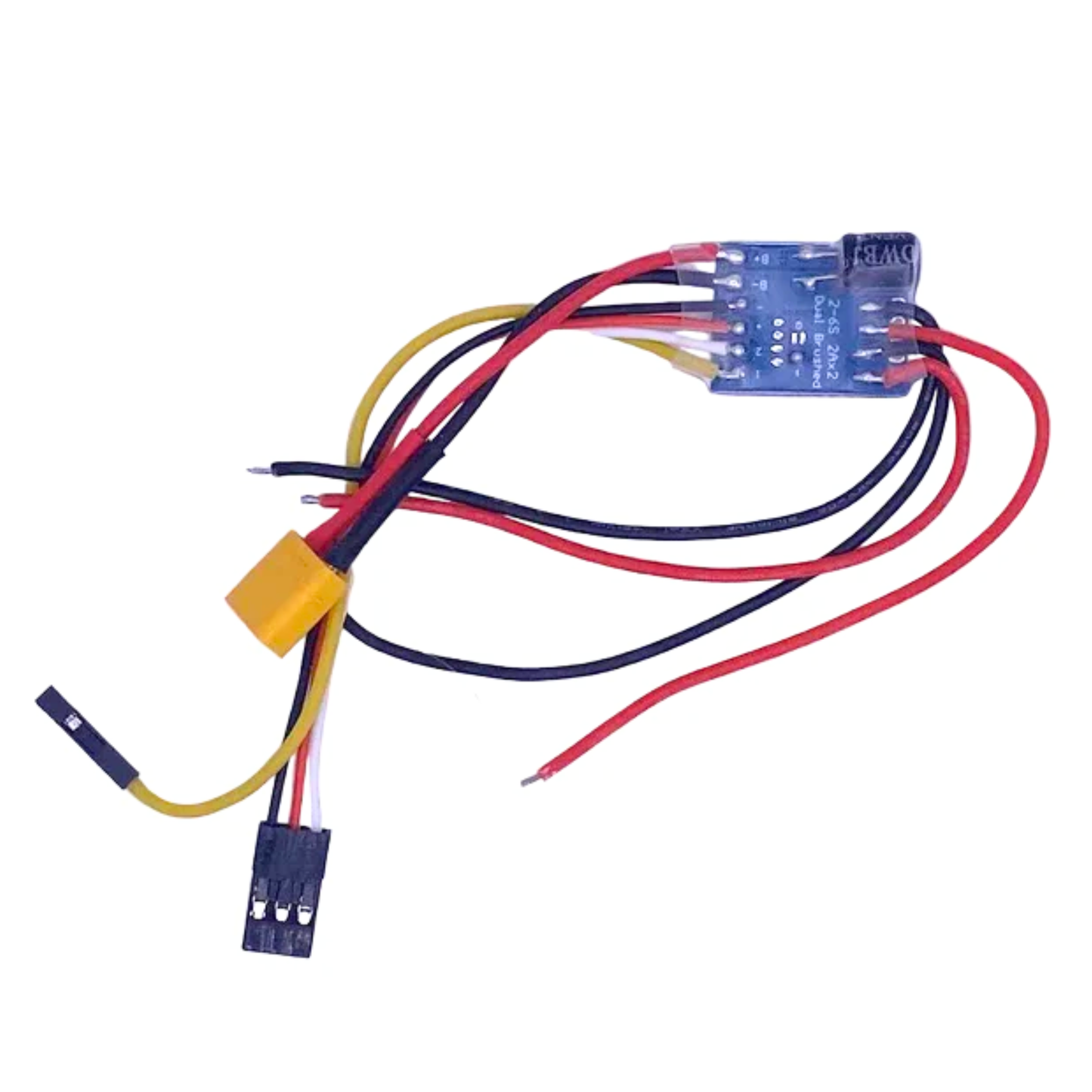

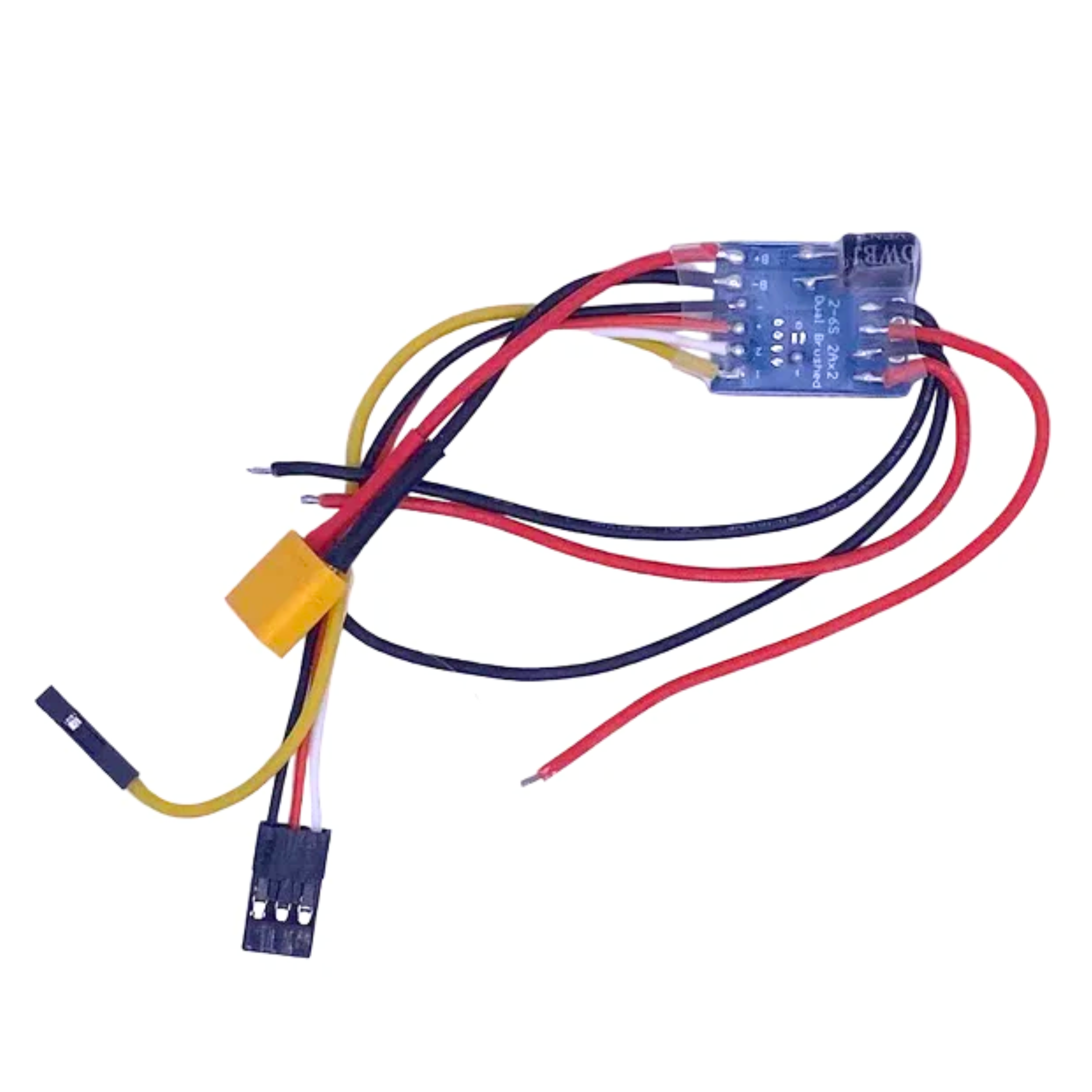

The Budget Ant DESC (Dual Electronic Speed Controller) is an affordable drive ESC built for antweight combat robots. Designed to fill the gap in quality budget ESC options for the 1lb weight class, this is a custom-configured dual brushed ESC tuned for an optimal driving experience. It comes with features like onboard mixing, center braking, and pre-soldered wires.
Features:
24x18x5mm size
7g weight with full length wires
2-4S lipo voltage rated (recommended for 3S robots)
2A current rated
Built in mixing is disabled by default

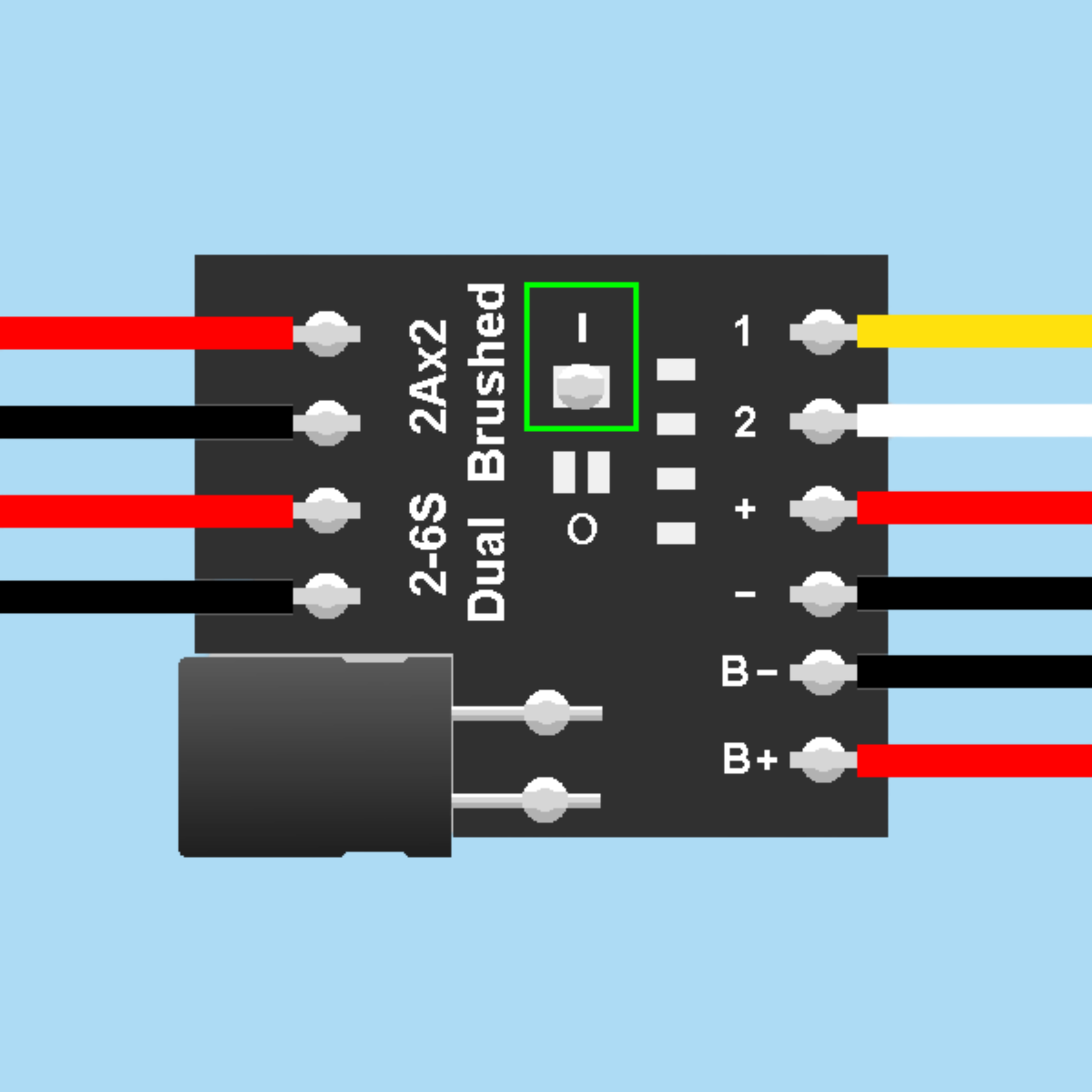

Cut the jumper near the "i" on the back of the board to enable

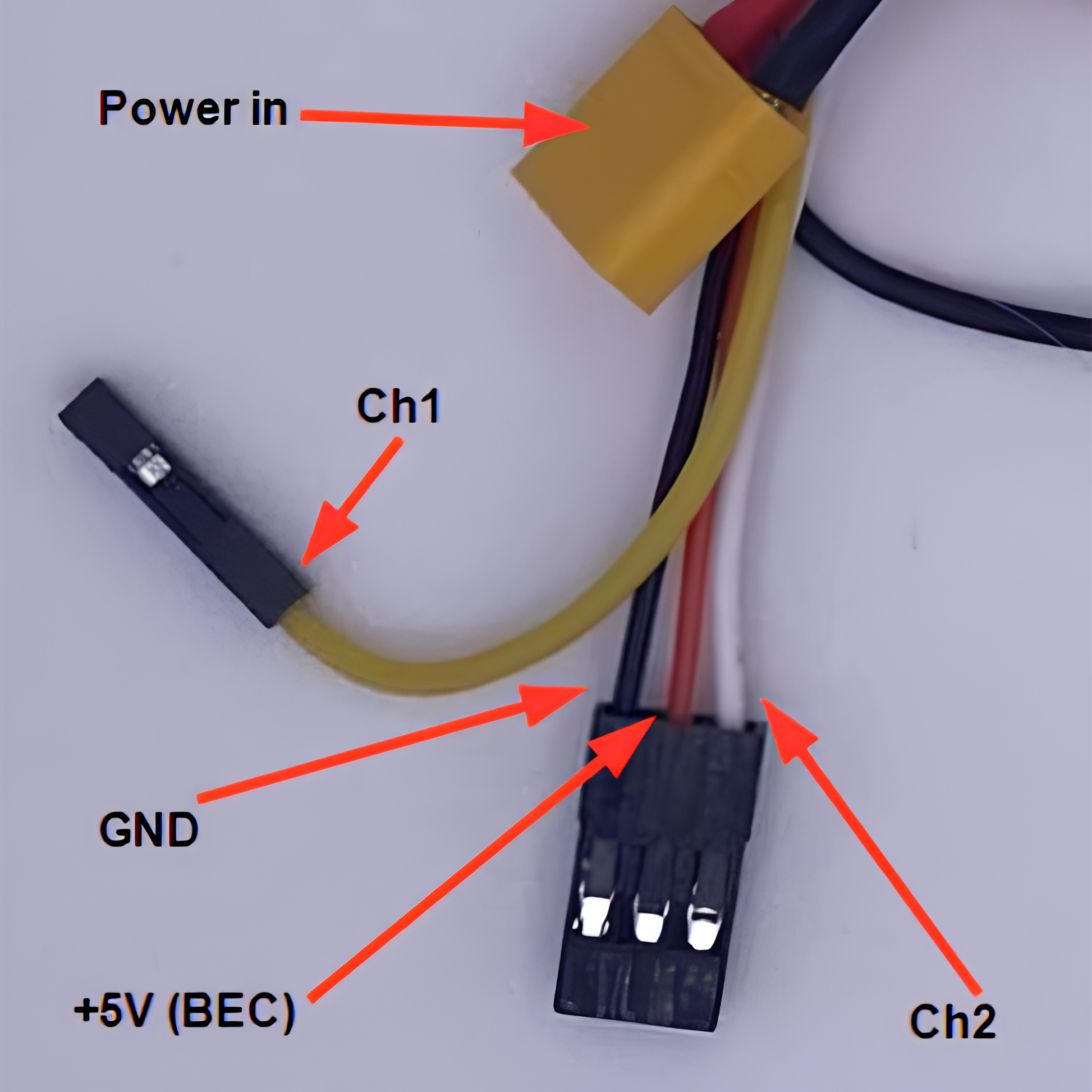

Integrated 5V BEC to power your receiver
Comes with XT30 pre-soldered to power input
WARNING: These ESCs do not have active current limiting. Stalling your brushed motor can cause the motor to overheat and fail, and may also permanently damage the ESC. Avoid extended stalls during use.
