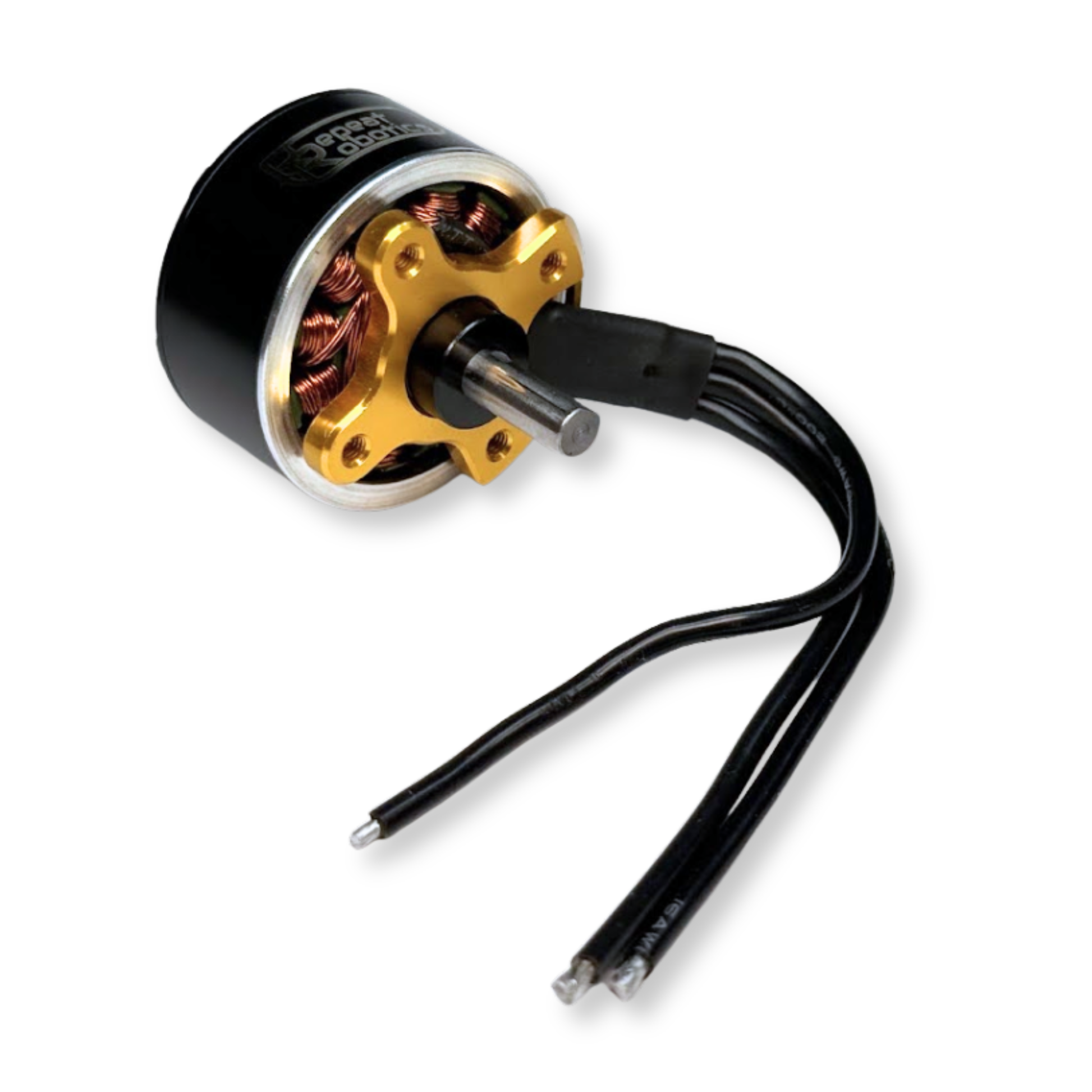

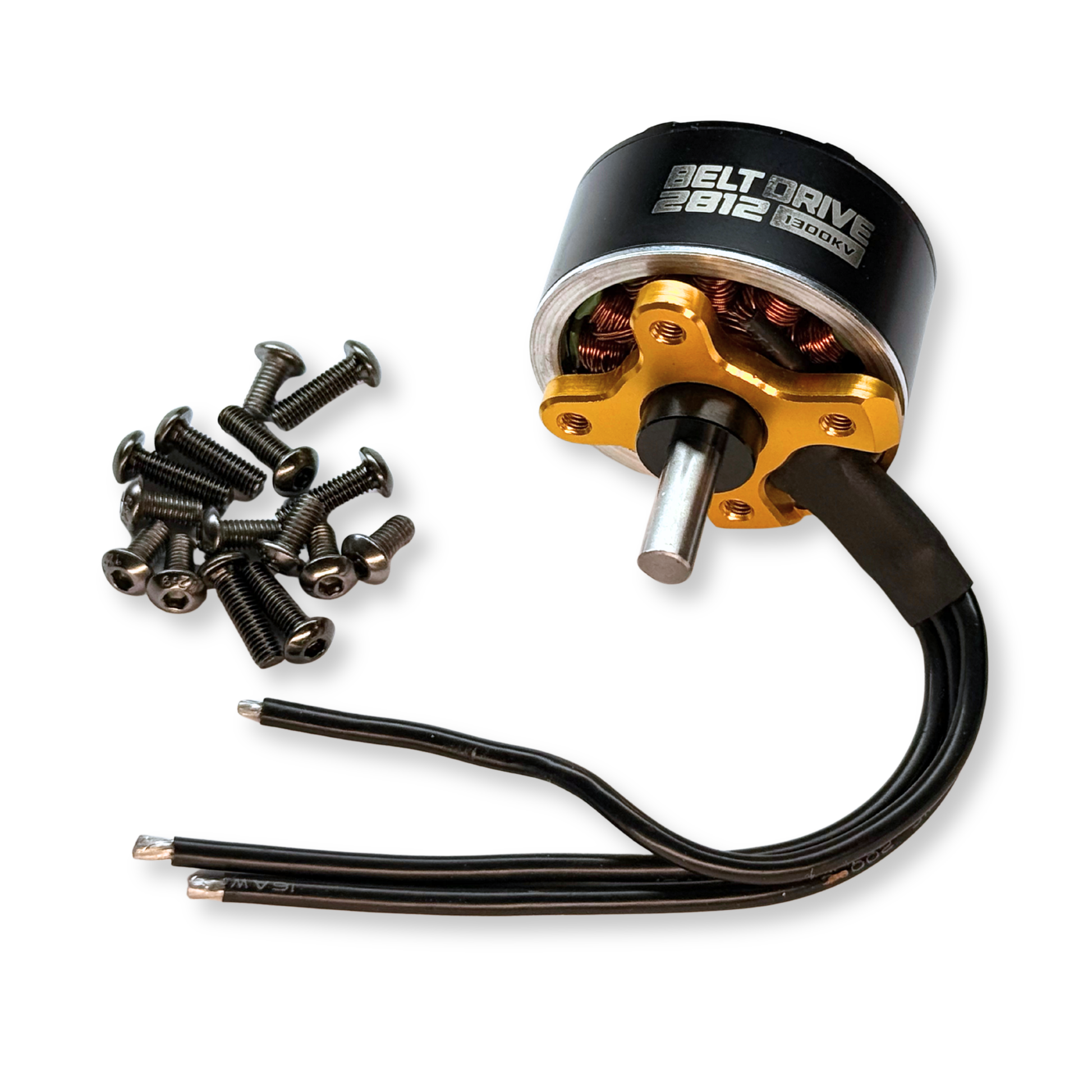

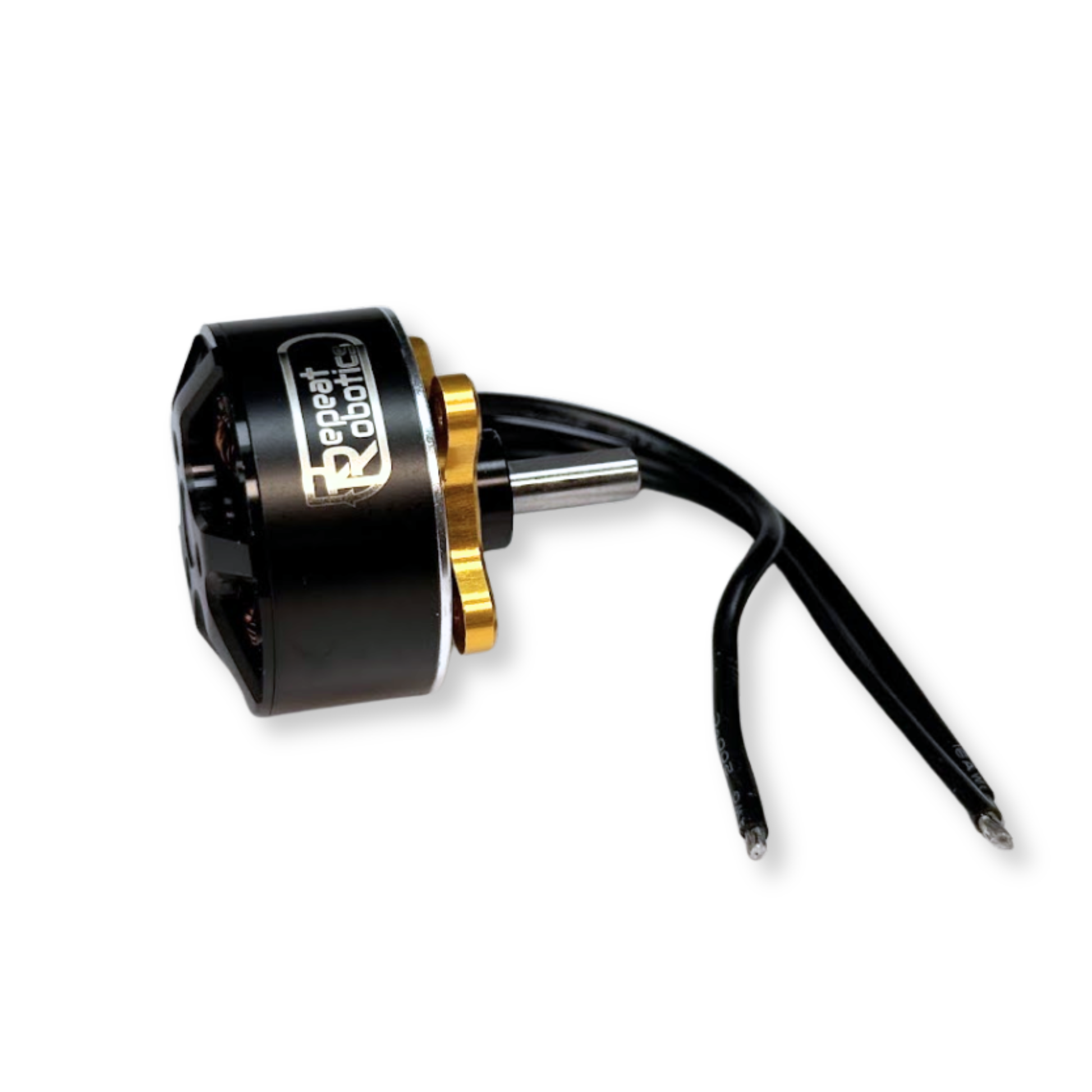

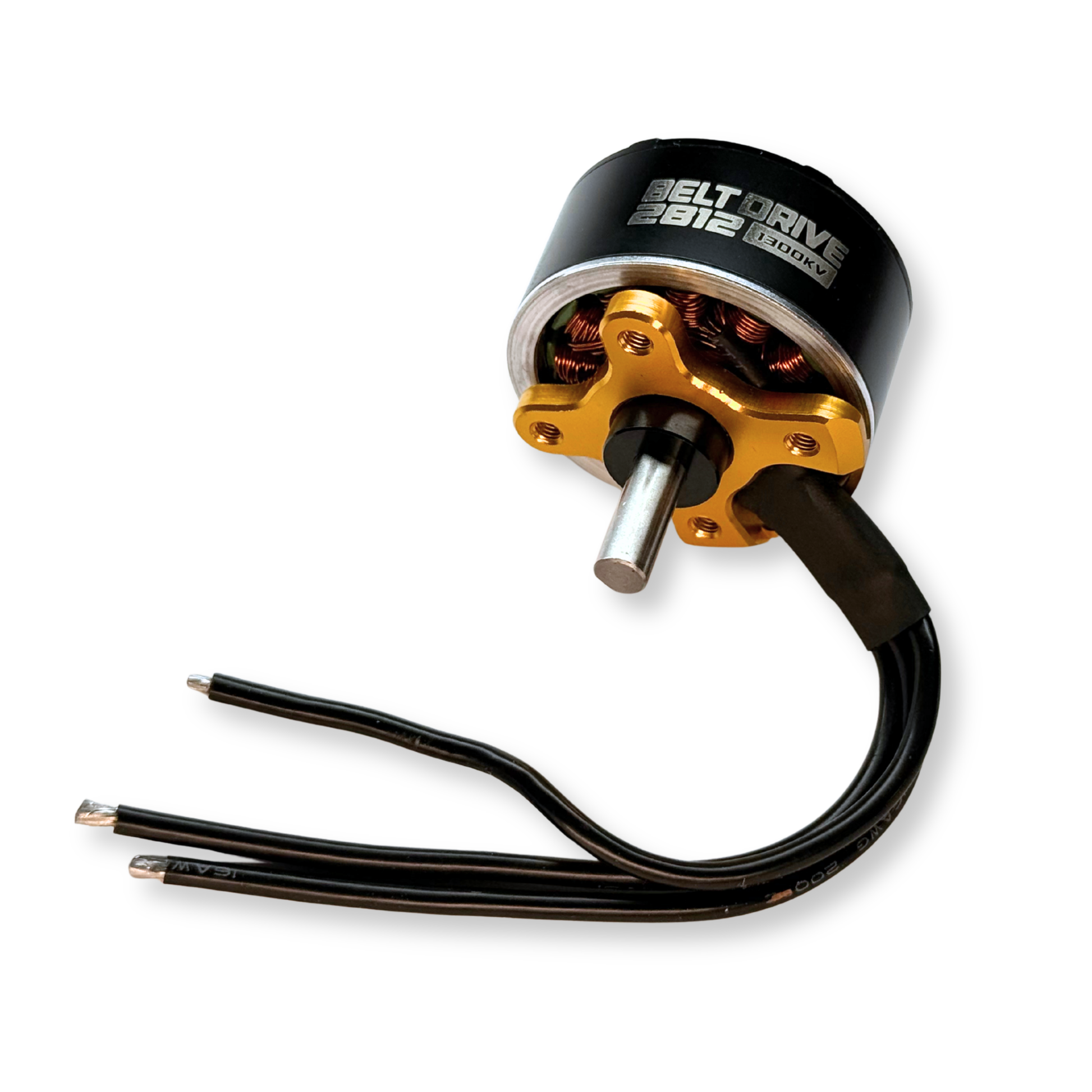

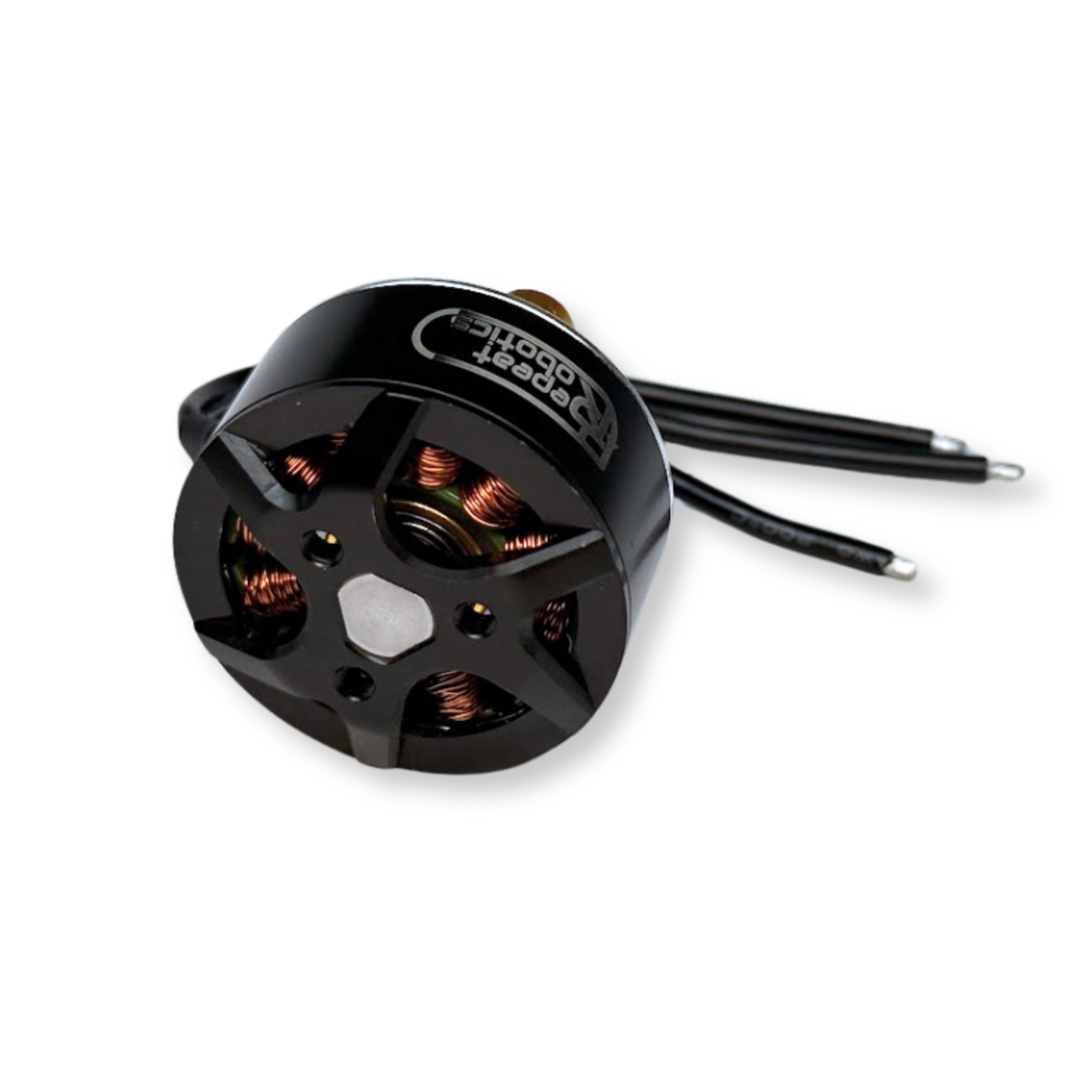

This Repeat Robotics 2812 motor was designed specifically for Beetleweight (3lb) belt drive weapon systems to be durable while lightweight! Featuring a 5mm flanged D shaft for mounting pulleys and 3X M3 holes on the top if you wish to drive around the can! The shaft collar has a T6 drive to make it easy to torque down!

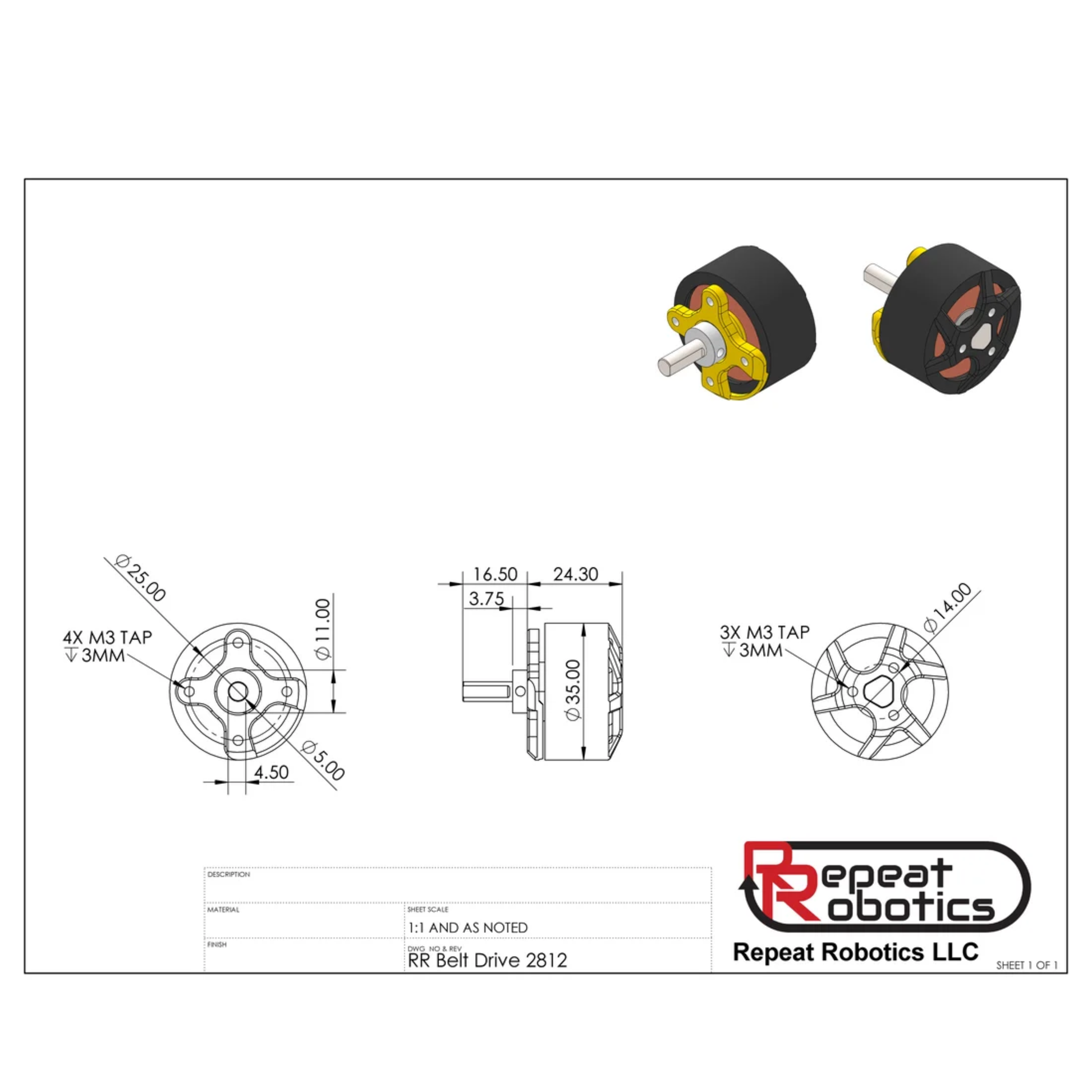

24.3mm height x 35mm diameter
85g weight with full wires
2812 size stator
1300 - 2-6S rated
Square 25x25mm M3 mounting pattern
5mm stainless steel shaft
Flanged shaft to ensure motor can is held on
Double caged magnets to prevent cracking
Shaft retained by a custom T6 drive shaft collar on a separate shaft flat
Designed for:
Belt drive from the shaft
Inverted timing belt drive on the can
3D printed pulleys on the can
Mates directly to repeat magnum gearboxes for a lightweight 12lb drive option - loosen the shaft collar before installing pinion)
Motor Performance: All tests were spinning a used Repeat Robotics beater bar with the 19:30 MB V-Belt system, stock Vortex 80A ESC, and a 4S LiPo battery.
