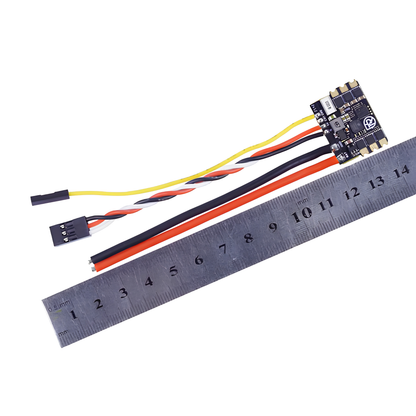

The Repeat AM32 Dual Brushless Drive ESC makes the insides of your bot neat and tidy while delivering high performance in a tiny package. Running the latest AM32 software, this ESC punches above its size.
Features:

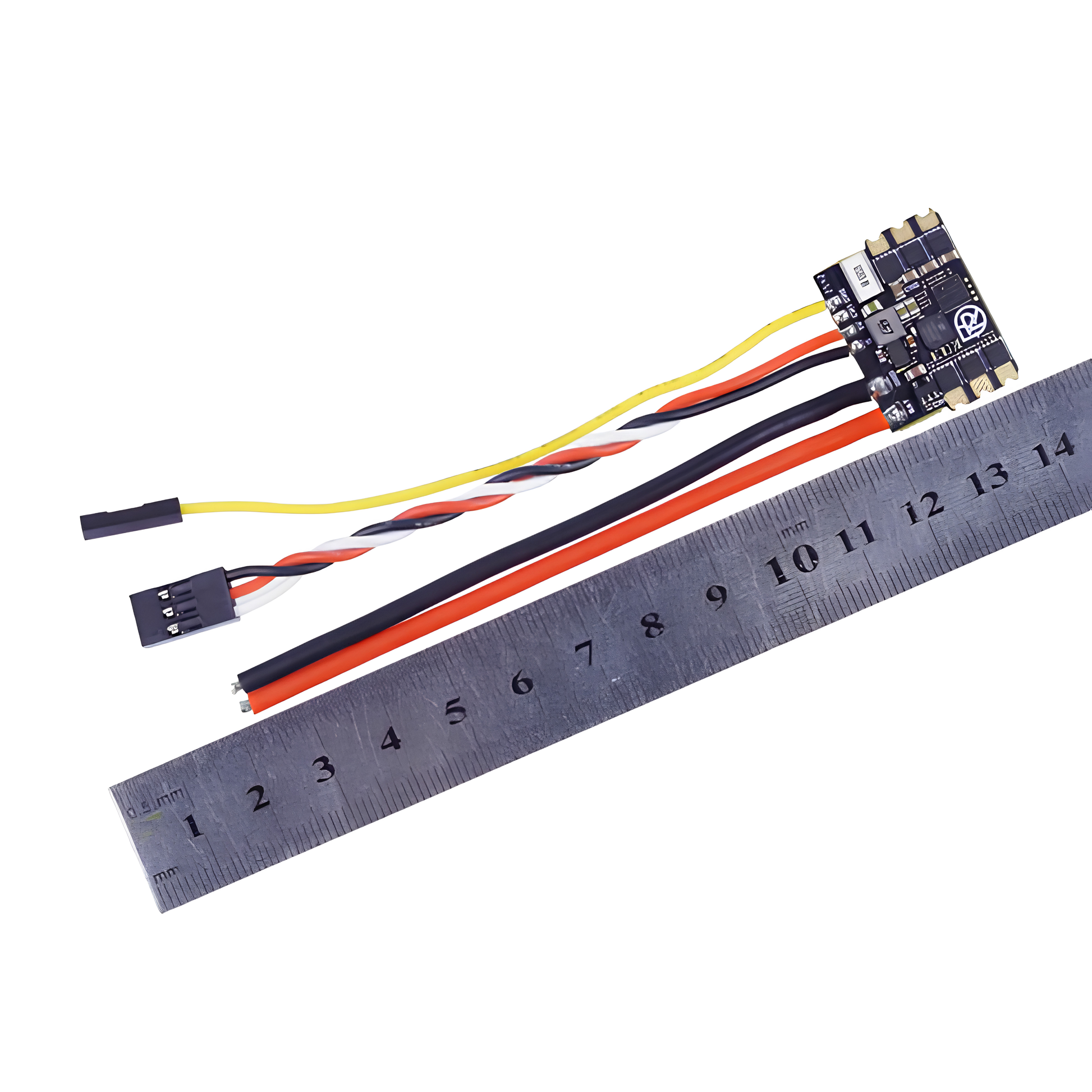

Small size - 28 x 20 x 5 mm

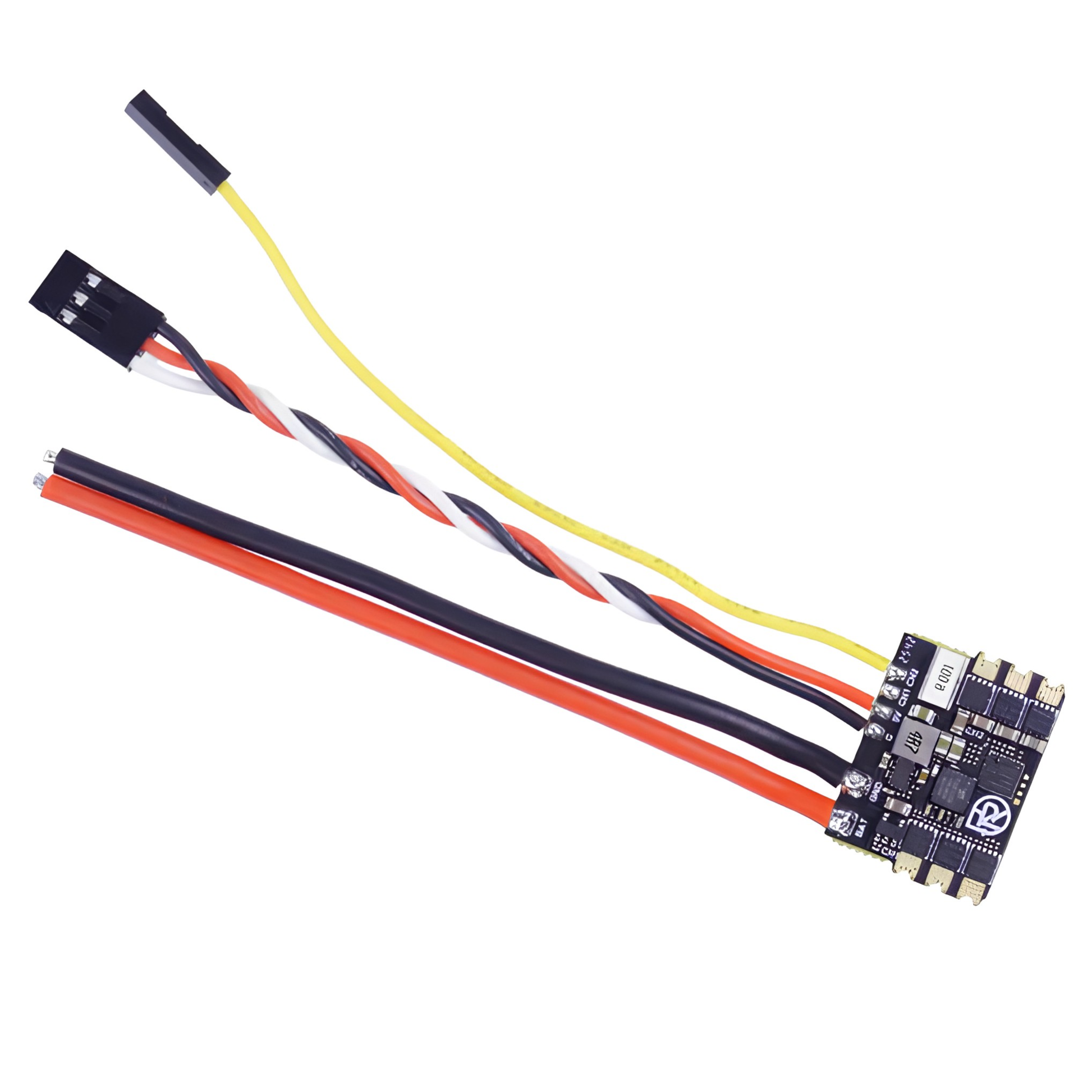

6g with signal wires
2-6S voltage rating

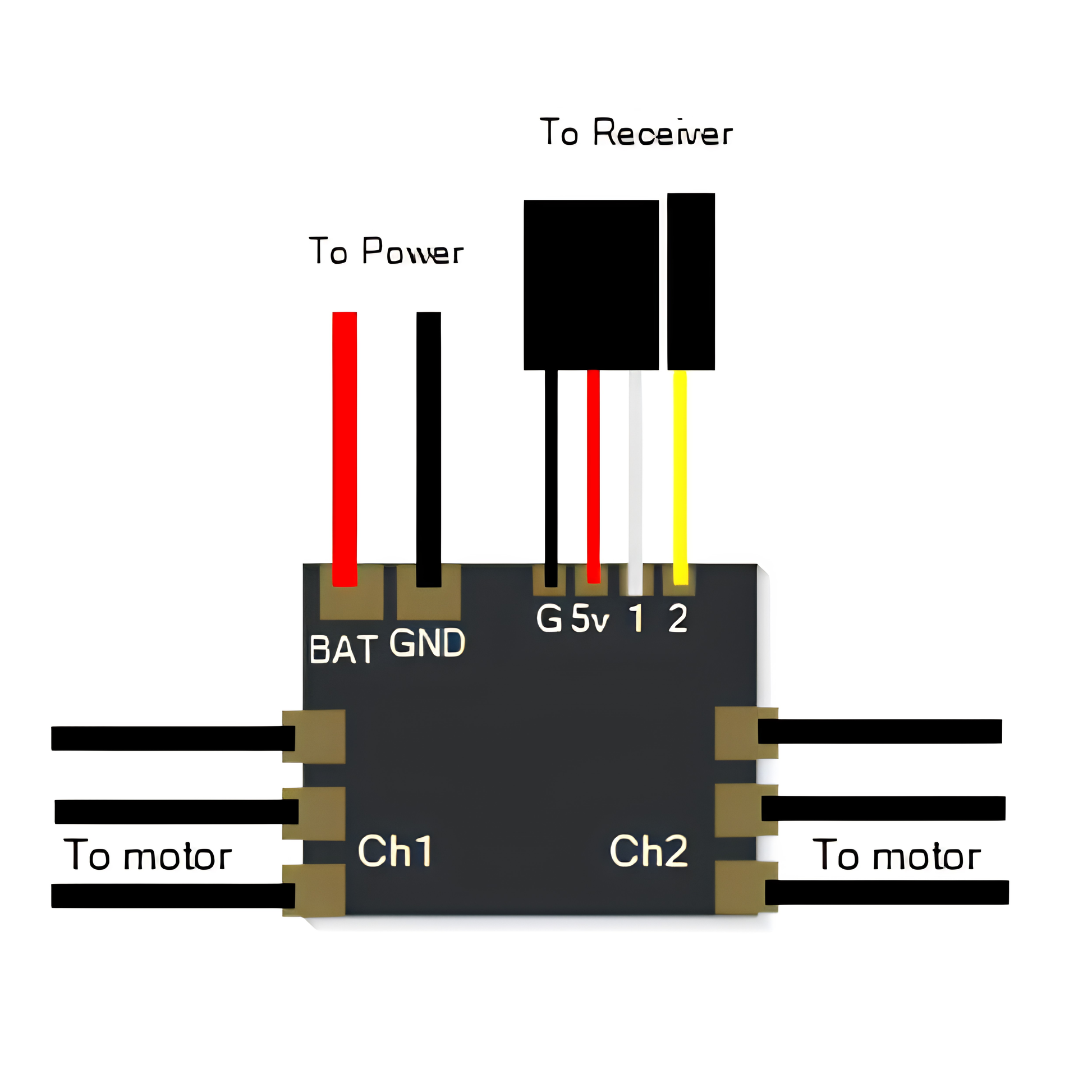

Integrated 5V BEC output to power receiver
Active current limiting on each channel (Comes with current limit enabled)
Pre-programmed with bidirectional drive settings

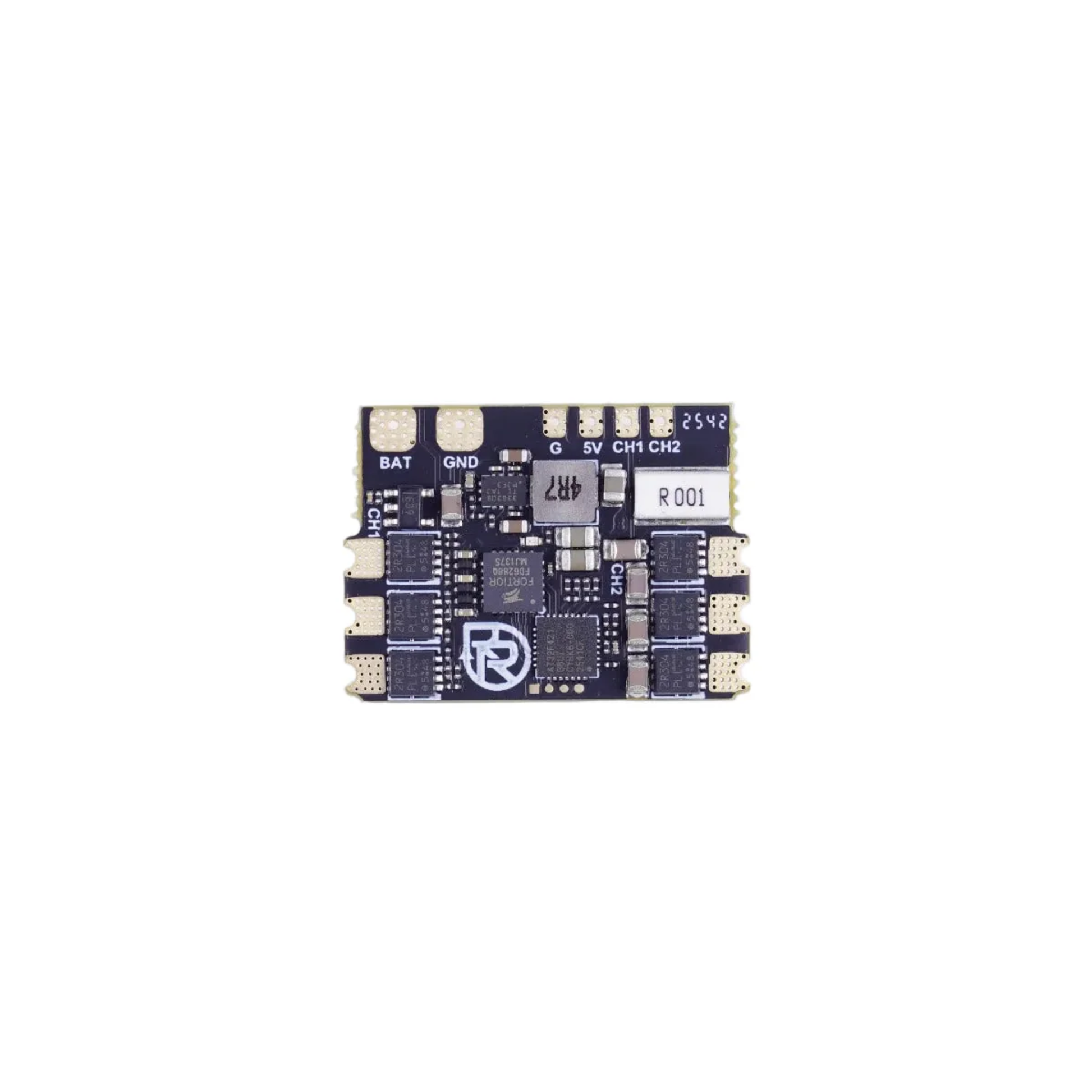

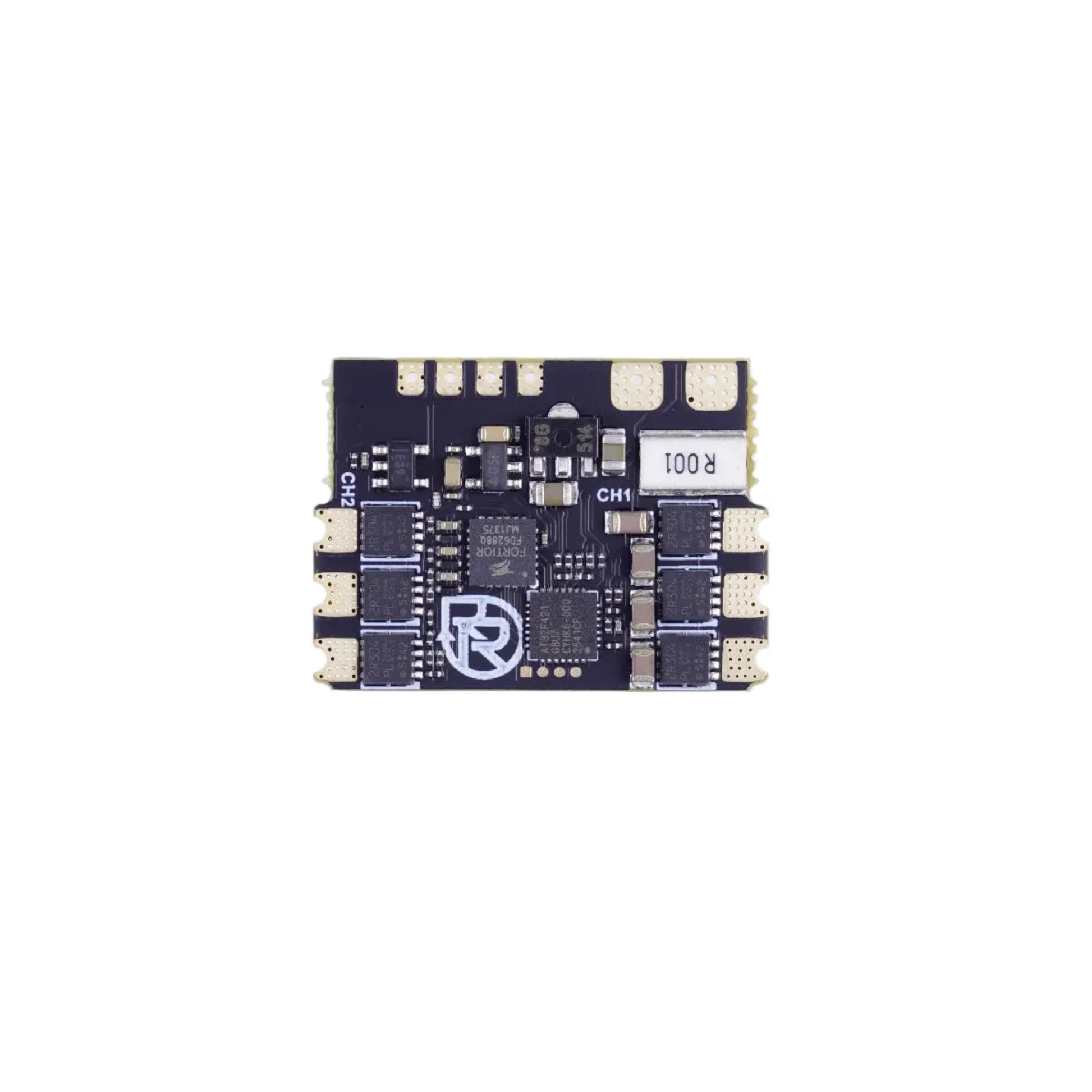

Power pads on both sides of the board allow you to solder your weapon ESC to the bottom side of the board
Equivalent components to 45A drone ESCs
Does not have mixing functionality
Suitable for 1lb to 3lb robots
Suggested 4A-8A current limit for 1lb-3lb robots
Can be used in larger robots with appropriate current limits

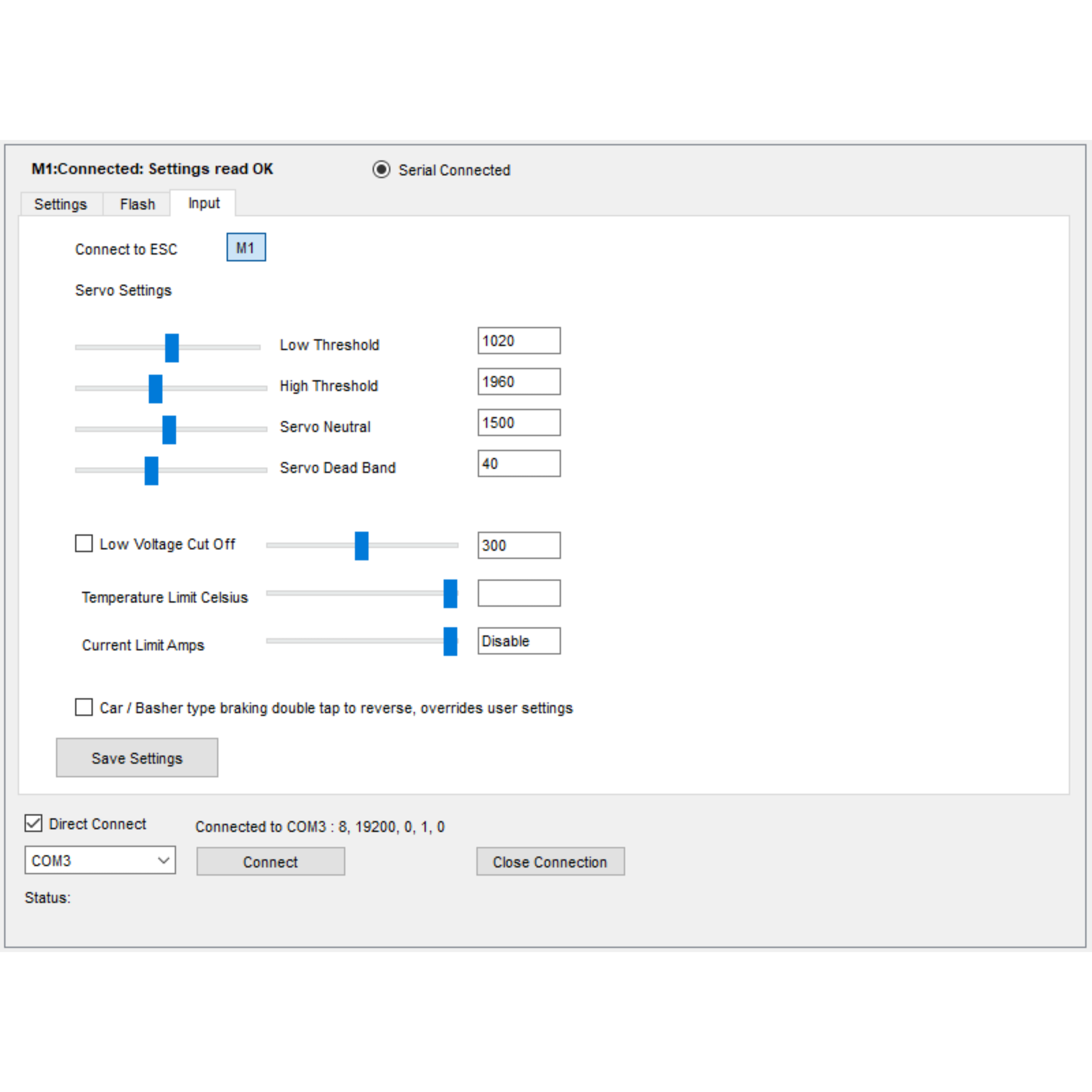

Find the most up to date version of the AM32 configurator tool here:https://am32.ca/downloadsLook for the profile for AM32_RR_ROBOT_DUAL_ESC_F421

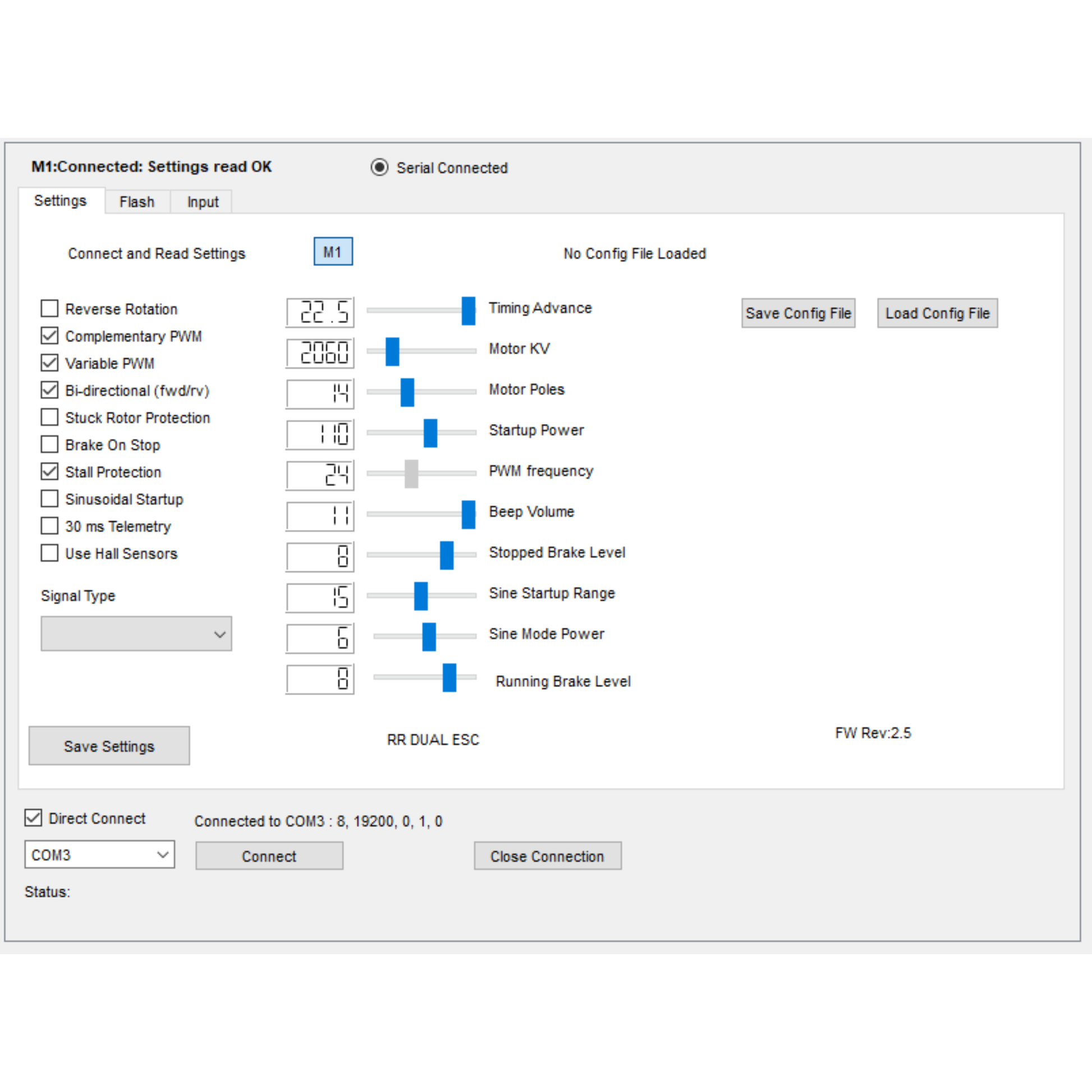

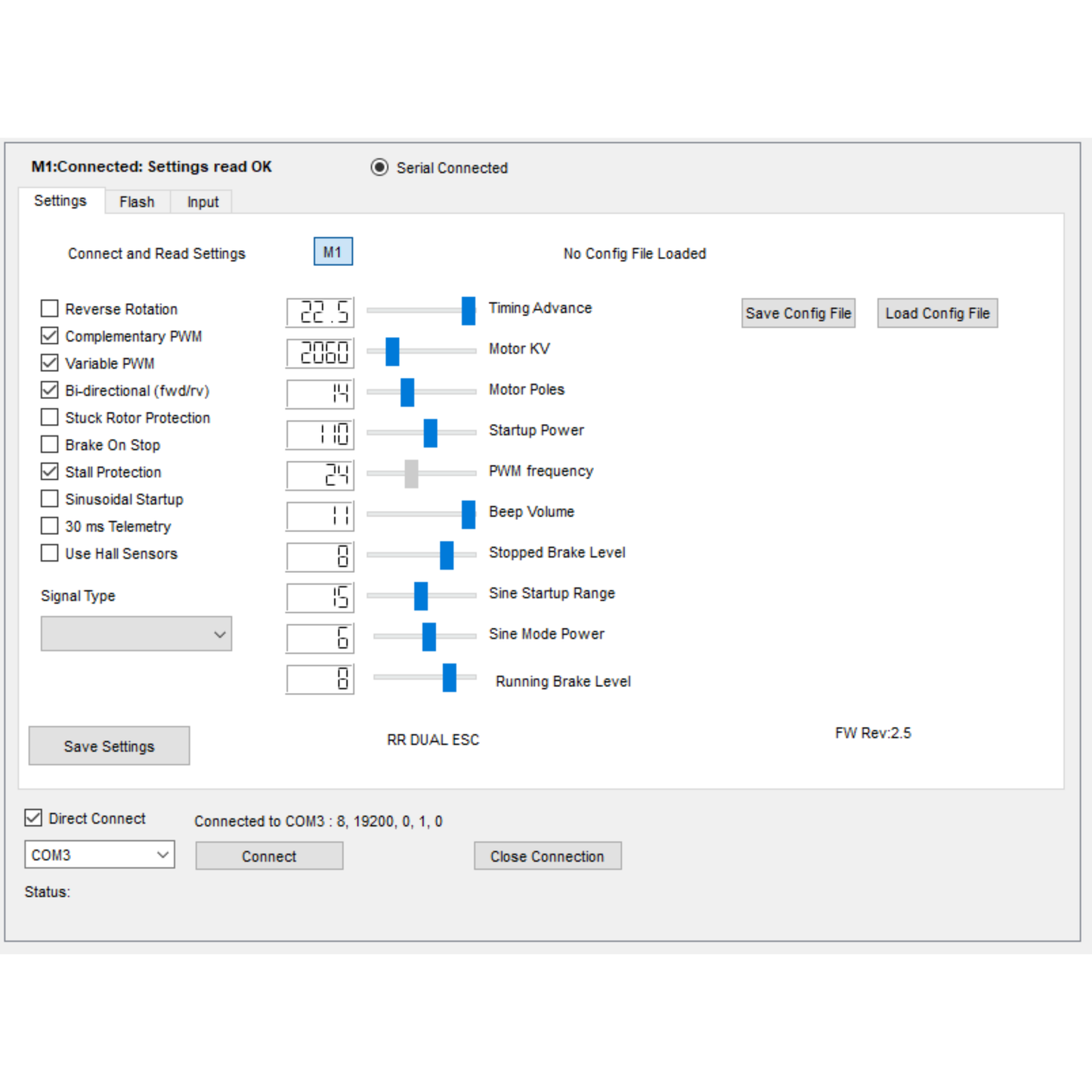

If your motors are moving slower than anticipated try updating the KV setting.
